ZK-660A Full Automatic Rigid Box Making Machinery
Product Information
ZK-660A Full Automatic Rigid Box Making Machinery is the most advanced equipment of making the rigid set-up box (such as shoe box,shirt box,jewellery box,gift box,food box,hardware box etc). It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, cardboard folding, spotting, automatic arm guiding, wrapping,folding and box forming in one process, The entire processes are automatic. Compared with the traditional hand made production, the produce efficiency improves by 30 times.
Main Characteristics:
1. Feida feeding paper automatically.
2. Equipped with heat exchanging gluing system.
3. Heat sealed equipment achieves angle pasting of unwrapped box in one process.
4. Heat sealed equipment achieves angle pasting of unwrapped box in one process.conveyor, with precision error ±0.5mm.
5. Automatic arm guiding device is between conveyor belt and Wrapper unit, which is controlled by computer.
6. Wrapper unit achieves box-feeding, side winding, roll-folding and rolling over.
7. It adopts PLC programmable controller, photoelectric tracing system and touch-sensitive screen. The wrapped box is finished in one process.
Product Information
ZK-660A Full Automatic Rigid Box Making Machinery is the most advanced equipment of making the rigid set-up box (such as shoe box,shirt box,jewellery box,gift box,food box,hardware box etc). It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, cardboard folding, spotting, automatic arm guiding, wrapping,folding and box forming in one process, The entire processes are automatic. Compared with the traditional hand made production, the produce efficiency improves by 30 times.
Main Characteristics:
1. Feida feeding paper automatically.
2. Equipped with heat exchanging gluing system.
3. Heat sealed equipment achieves angle pasting of unwrapped box in one process.
4. Heat sealed equipment achieves angle pasting of unwrapped box in one process.conveyor, with precision error ±0.5mm.
5. Automatic arm guiding device is between conveyor belt and Wrapper unit, which is controlled by computer.
6. Wrapper unit achieves box-feeding, side winding, roll-folding and rolling over.
7. It adopts PLC programmable controller, photoelectric tracing system and touch-sensitive screen. The wrapped box is finished in one process.
8. Automatic trouble diagnosing.

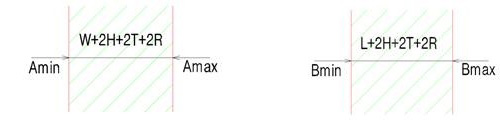

In the complete respect of paper limits indicated in the technical specifications,
the product is well done only when the two following conditions are satisfied:
Specifications
|
Paper wrap grammage |
Min |
100g/m2 |
|
Max |
160g/m2 |
|
|
Cardoard blank thickness |
Min |
0.8mm |
|
Max |
3mm |
|
|
Speed/(pcs/Min) |
20-25 |
|
|
Paper pile height |
260mm |
|
