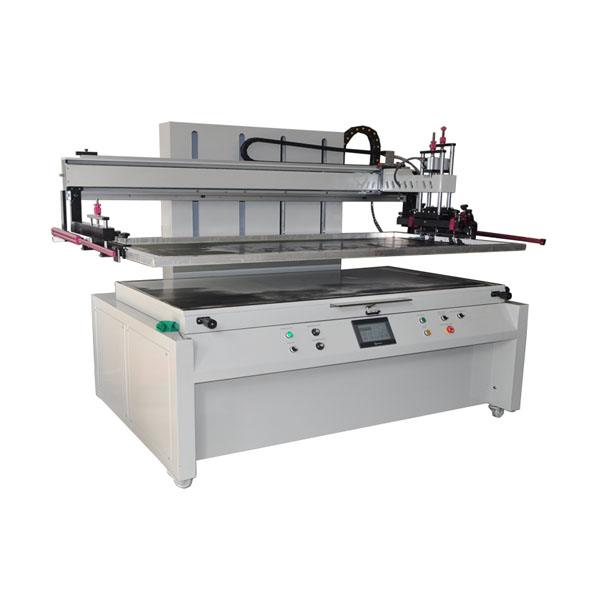

pneumatic flat bed screen printing machine
Product Description
|
Model: |
S-80120PE screen printing machine |
|
Operation Mode: |
Semi-automatic / automatic |
|
Max printing height: |
200mm |
|
Work table |
800x1300mm |
|
Max printing size: |
800x120mm |
|
Max printing speed: |
900pcs – 1100pcs / hour |
|
Position accuracy |
< 0,02mm |
|
Voltage /Frequency, pressure requirement |
110/220V; 50/60Hz, 6 bar |
|
Dimension / N.W , G.W |
2020x1550x1880mm, 680kg |
Screen printing machine features:
1) the squeegee printing system is designed in rail structure , which ensures extremely stable printing
2) New pneumatically printing head lifting design, provides convenient replacement and cleaning of squeegee, spatula or screen plate .
3) Printing stroke can be adjusted laterally to suit various screen plate sizes.
4) the printing table is equipped with 3 sets of micro-metric adjustment knobs for precision adjustment of printing in vertical, transversal and angular directions . Work table have vacuum or t-shape groove type for options
5) equipped with shock absorber, providing precise and stable operation for multi-color printing .
6) WEIVIEW touch screen + Mitsubishi PLC for the large screen printing machine
