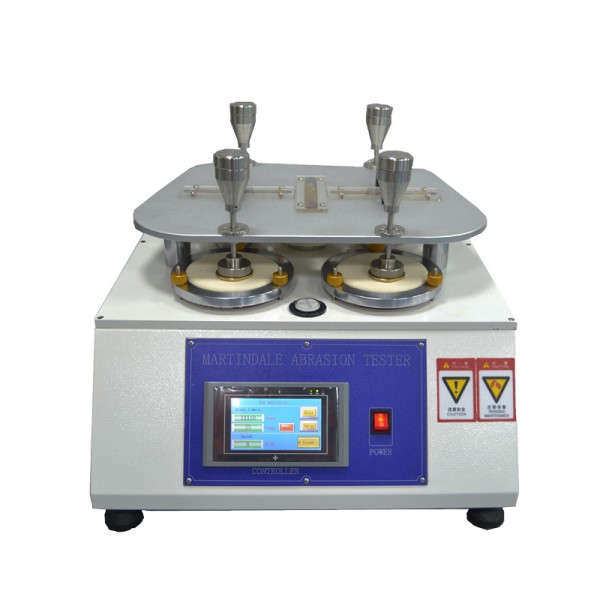

Martindale abrasion resistance pilling tester, Textile abrasion and pilling test
Product Description
Martindale abrasion resistance pilling tester, Textile abrasion and pilling testing machine
Description:
Martindale abrasion resistance pilling tester, Textile abrasion and pilling testing machine mainly applies to the resistance test of textile and outside layer, lining orunderlayer of the footware or the similar fabric.
Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajousoriented for the regulated times, then observe the difference between it and the original samples anddecide the grade of scrubbing resistance.
Main Features:
• Textile Martindale Abrasion Testing Machine learn the advantages of domestic and foreign similar equipment’s design,it with elegant appearance, and touch display screen, the interface easy to understand,
easy to operate.

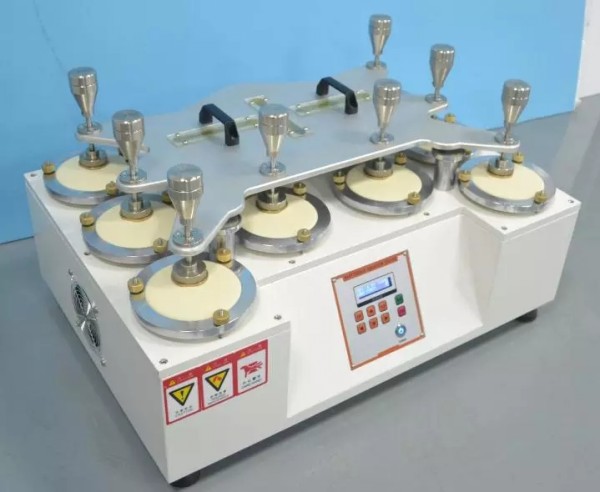

• Computer system uses two counting methods, visual appearance, convenient setting, 4 or 6 or 8(optional) station testing at the same time to improve test efficiency.
• Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.
• Variety of trajectory matching accessories, can adapt to a variety of test methods standard.
Standard:
The pilling degree test of fabric of GB/T4802.2, ASTM D4970, ISO12945-2 etc.
The wear test of fabric of GB/T13775, ASTM D4966, ISO12947 etc.
Specifications:
|
Model Name |
Textile Martindale Abrasion Testing Machine |
|
Station number |
4,6,8 station (Optional) |
|
Count display
|
a. Estimated counting: 0~999999 times |
|
b. Total counting: 0~999999 times |
|
|
Maximum dynamic range |
24±0.5mm, 60.5±0.5mm |
|

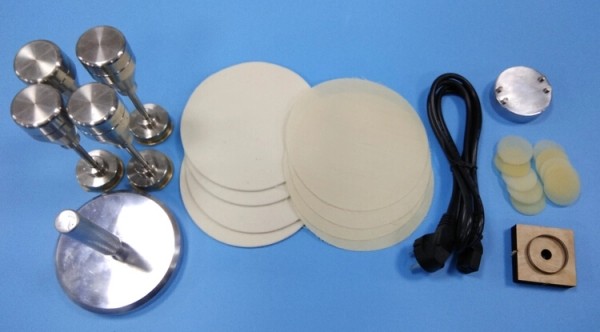

Weight of pressure thing
|
a.Gripper: 200±1g |
|
b. Cloth samples hammer: 395±2g |
|
|
c. Furniture accessories sample hammer: 594±2g |
|
|
d. Stainless steel butterfly piece: 260±1g |
|
|
Effective friction diameter of grinding block |
A type: 200g (1.96N) friction head ¢ 28.8-0.084mm |
|
|
B type: 155g (1.52N) friction head ¢90-0.10mm |
|
The relative velocity of Gripper and the grinding station |
50-2r/min |
|
Weight of pressure hammer |
2385±10g |
|
Dimensions |
885*600*410mm(L*W*H) |
|
Weight |
150kg |
|
Power |
Ac220V,50Hz |
Different Model of Control Panel for Your Optional:
-
Electron liquid crystal display 8 digits, auto-stop.
-
LCD control panel
-
Touch screen control panel

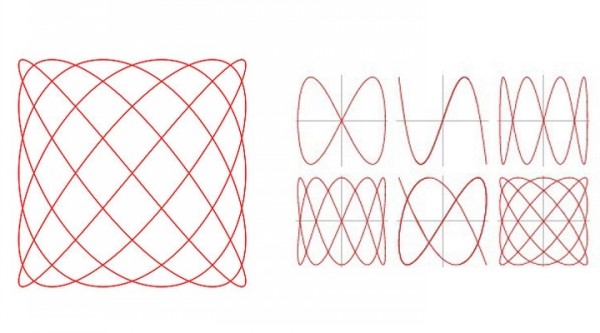

Lissajous made by our Textile Martindale Abrasion Testing Machine
