sand and dust test chamber,sand testing equipment
Product Description

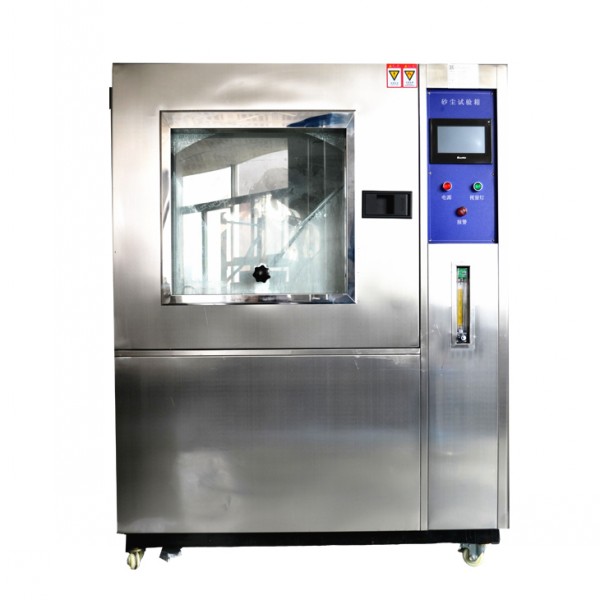

Touch Screen Programmable Environmental Box IP Sand Dustproof Tester
1. Application
Touch Screen Programmable Environmental Box IP Sand Dustproof Tester provides an environment to test the exposure of automotive and electronic components to concentrated levels of dust in order to validate product seal integrity.
Some electromechanical components may be able to tolerate fine dust, but larger particles affect or totally inhibit mechanical action. Cell phone cases are another excellent candidate for ingress protection from sand
& dust.
2.Technical standards
GB4208–93, GB10485, GB2423.37–89, GJB150.12–86, IP5X.IP6X
3.Technical parameters
| Item | Touch Screen Programmable Environmental Box IP Sand Dustproof Tester |
| Test chamber dimension | 800*800*800mm (800*1000*1000, 1000*1000*1000 ,1000*1500*1000mm) |
| Outer dimension | according to inner structure |
| Metal screen wire diameter | 50um |
| Screen line space | 75um |
| Environment temperature and humidity | 25~40°C, 45~75%RH |
| Dust(talcum powder) concentration | 2~4kg/m3 |
| Test time | Dust test time set freely, 0~999.9hr |
| Test dust | Dry talcum powder or port land cement |
| Test standards | GB4706,GB2423,GB7000.1,IEC60529 |
| Cable hole | φ50mm(circumscribed power accepted) |
| Power supply | AC 2ψ3W220V 50HZ 2.5KW |
♦ The dust chamber provide a ready-made solution to common dust test standards for automotive and electronic-cabinet requirements.
4.Features
♦ Stainless steel interior
♦ Concentration of dust can be easily varied by changing the air pressure and the amount of the blowing time.

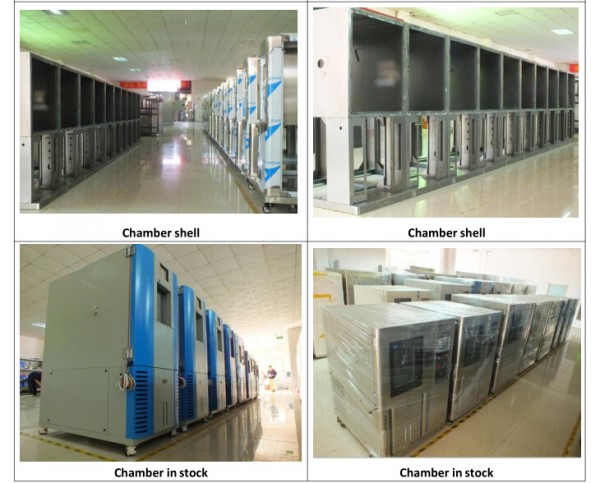

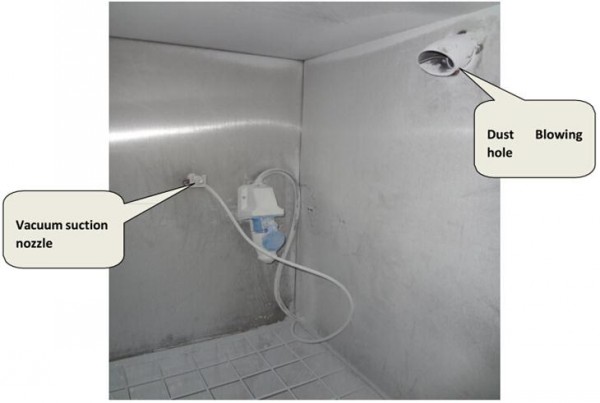

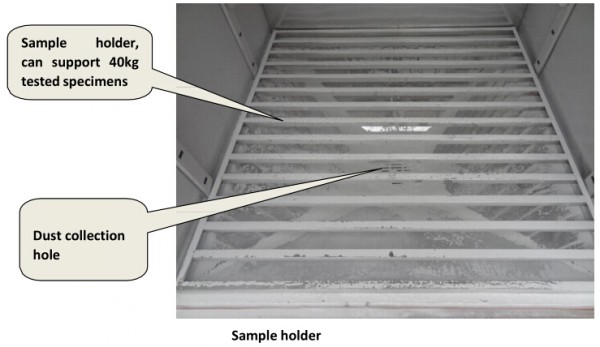

5. details of our machine
FAQ
1. Q: What is your warranty ?
12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
2. Q: How-to vedio provided ?
Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: Is the machine made in your own plant ?
Yes, welcome to visit our plant(factory), also we support OEM and ODM4. Q: What about the quality ?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
