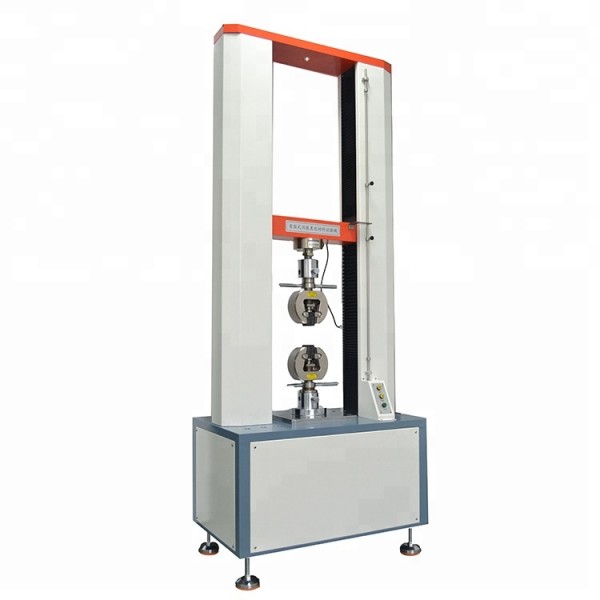

Universal tensile tester,tensile testing machine
Product Description
Factory direct tensile strength testing machine/Universal tensile test machine
Product Description
Physics Laboratory Instruments for Tensile Testing
Products Description
Physics Laboratory Instruments for Tensile Testing is suitable to test tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished products. It is widely used in controling material quality.
Application Industries
Physics Laboratory Instruments for Tensile Testing is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
Main features of Universal tensile test machine
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highly improve the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
Specifications of Universal testing machine
Items
|
Items |
Tensile Testing Machine |
|
Capacity |
100. 200. 500. 1000. 2000. 3000. 5000. 10000kg |
|
Unit Switchover |
G, KG, N, LB |
|
Display Device |
LCD or PC / Tensile Testing Machine |
|
Resolution |
1/250,000 |
|
Accuracy |
±0.5% |
|
Max. Stroke |
1000mm (including fixture) |
|
Test Speed |
0.1-500mm/min (adjustable ) |
|
Motor |
Panasonic Servo Motor |
|
Screw |
High Precise Ball Screw |
|
Elongation Accuracy |
0.001mm |
|
Power |
AC220V, 50HZ or customized |
|
Weight |
Approx.500kg / Tensile Testing Machine |
|
Accessories parts |
tensile clamp, computer system, English software CD, operation CD, user manual |
Absorbed manufacturer for mechanical properties measuring equipment. Specialized clamps to exactly fit your test request!

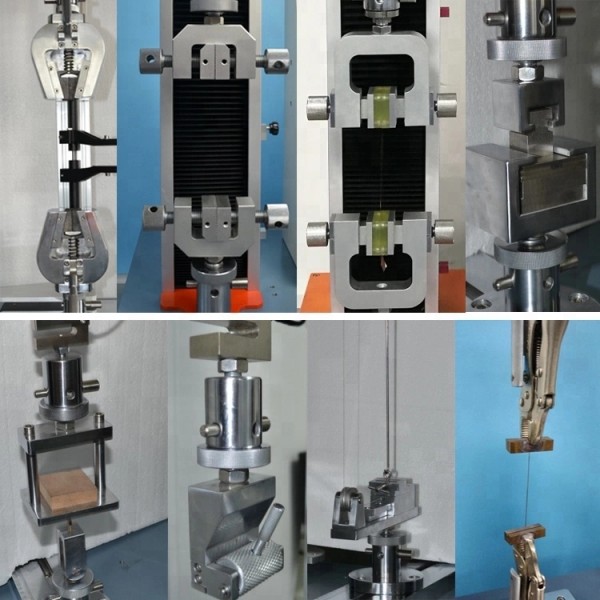

Frequently Use Tensile Grips:

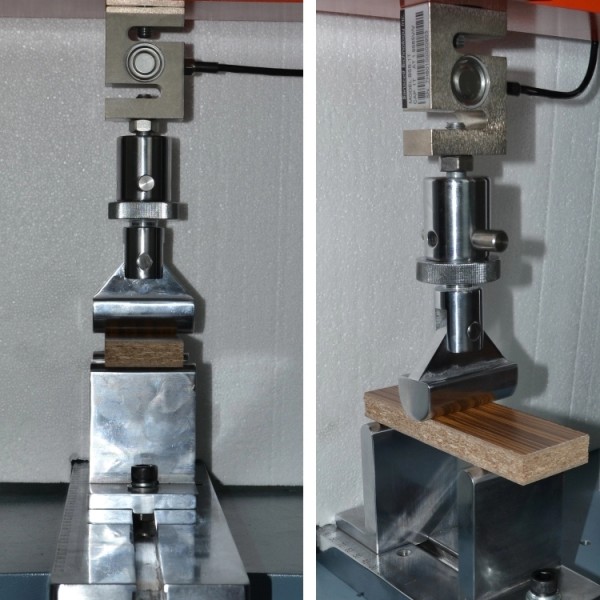

Frequently Use 3/4 Point Bend Test Grips:

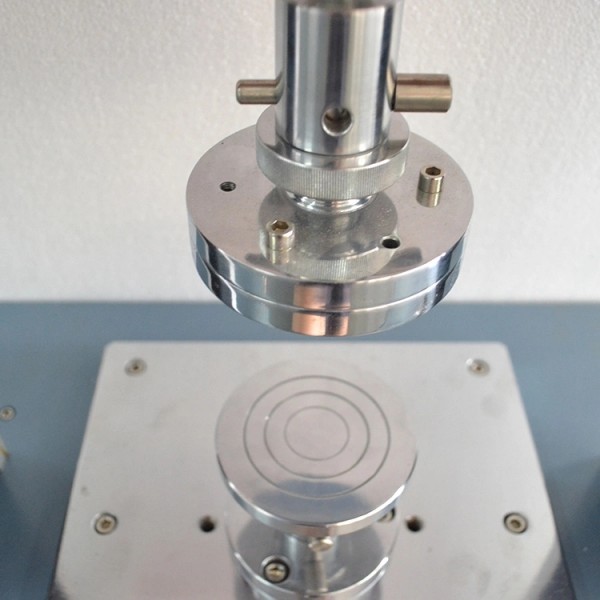

Frequently Use Compression Test Grips:
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
