product Description
Brief introduction——Auto Keystoke Button Load Displacement Curve Tester

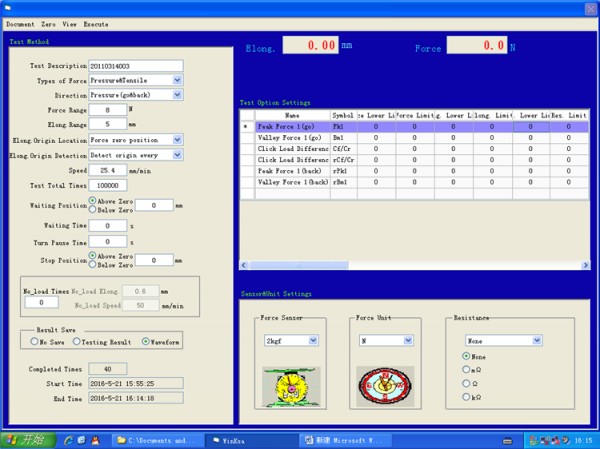

This machine is applies to all kinds of rubber buttons, metal buttons and switches for shrapnel(load displacement) curves,while under pressure to complete the rebound test. Chinese window using Windows
programs,the operation is simple,automated storage test data(load-displacement curve,life decay curve,

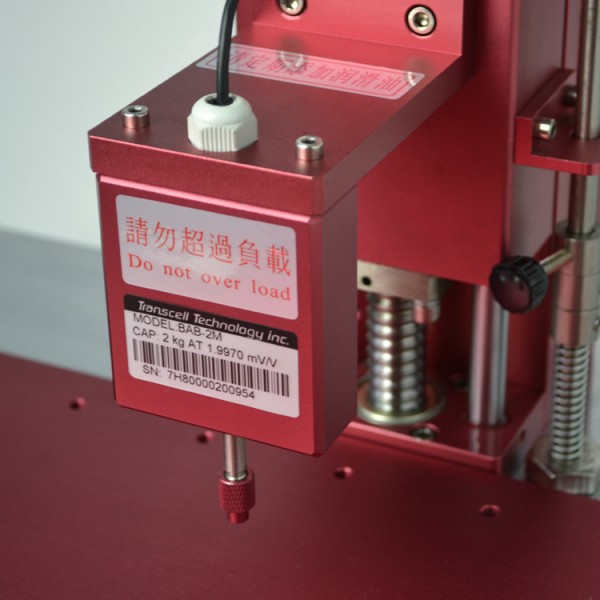

the test results),and all test conditions can be stored.The machine adopts the high precision load cell
measurement and servo motor drive can be accurately measured the detection equipment.
Test Items——Auto Keystoke Button Load Displacement Curve Tester
Rubber key curve test
Spring & key curve test
Keyboard & mobile keystoke curve test
Switch curve test
Buttons and switches ( load - stroke ) curve test
Technical parameters——Auto Keystoke Button Load Displacement Curve Tester
| The test load types | 2kgf,500gf (optional) |
| Minimum display load | 0.01gf |
| Maximum test stroke | 100mm |
| Minimum test stroke | 0.01mm (0.001 for choose) |
| Measurement speed range | 1-100mm/min |
| Drive mechanism | panasonic servo motor / ball screw |
|
Speed precise |
0.5% |
|
Power |
AC 110V or 220V,5A |
|
Machine size |
300*270*500mm(W*D*H) |

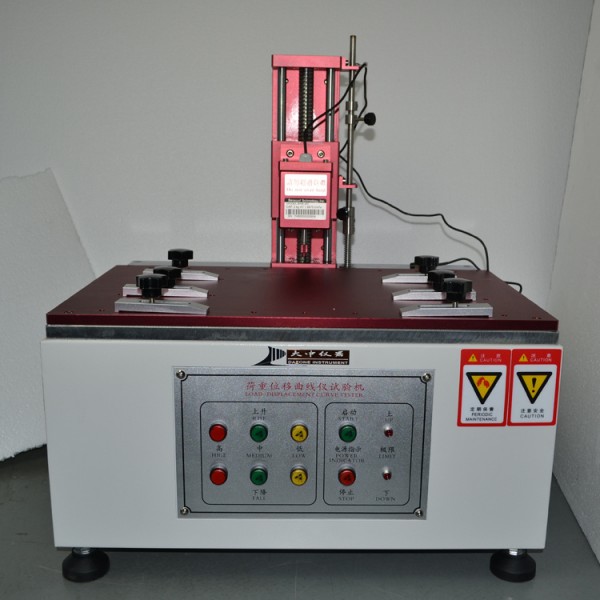

Real imagines——Auto Keystoke Button Load Displacement Curve Tester

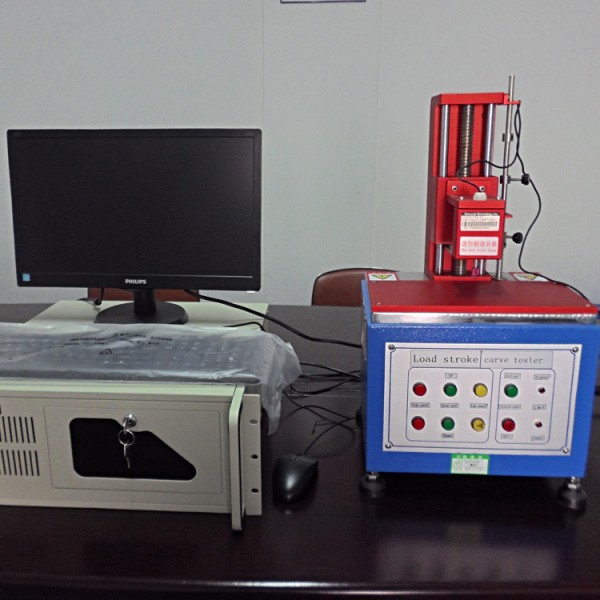

2 different types for your reference.

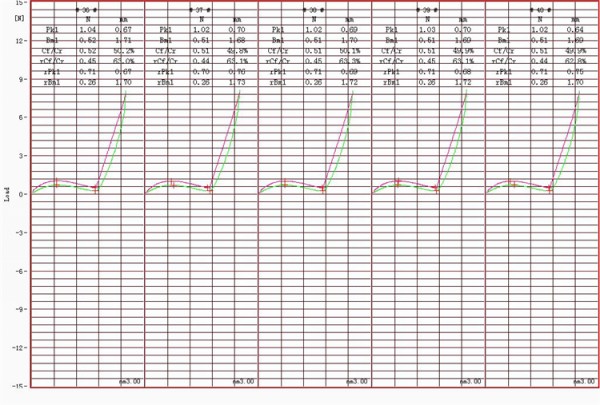

Test curce and results
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
