Product Description

Video link: https://www.youtube.com/watch?v=KHYaum_KtKM

  Automatic Tumbling Barrel Drop Test Machine





Summary

The Automatic Tumbling Barrel Drop Test Machine simulates repeated falls which may occur to such devices as connectors or small remote control units which are normally attached to cables during use.

The Automatic Tumbling Barrel Drop Test Machine is the recommended instrument to perform such a test. A barrel is turned at a rate of five revolutions per minute resulting in ten falls per minute. The sample falls from a height of 500mm on to a steel plate that is 3mm thick and backed by 19mm thick hardwood. The number of falls is set by the user in accordance to the standard they are meeting. After the tumble barrel procedure, the specimen is checked visually, mechanically, and electrically as prescribed in the relevant specification.

Features

• Apply on the phone (or other small electronic products) and special equipment which repeated free fall tests.
• Simulated the phone free drop test when using mobile phone.
• Reasonable structure, unique, different mobile phone models have full applicability.
• Equipment operation and stability, low noise, maintenance-free.

Purpose of Tumbling Barrel Drop Test

A. durability of the housing.
B. Internal Structures in throw performance.
C. withstand repeated free fall adaptability.

Standards

     IEC60068-2-32  GB/T2324.8

Parameter

Item	Automatic Tumbling Barrel Drop Test Machine
Power	AC 220V(specified)
Weight	105Kg
Specimen weight	5Kg(max)
Number of tests	1-999999
Drum height	500mm/1000mm
Drum weight	275mm/350mm
Testing speed	0-20times/min

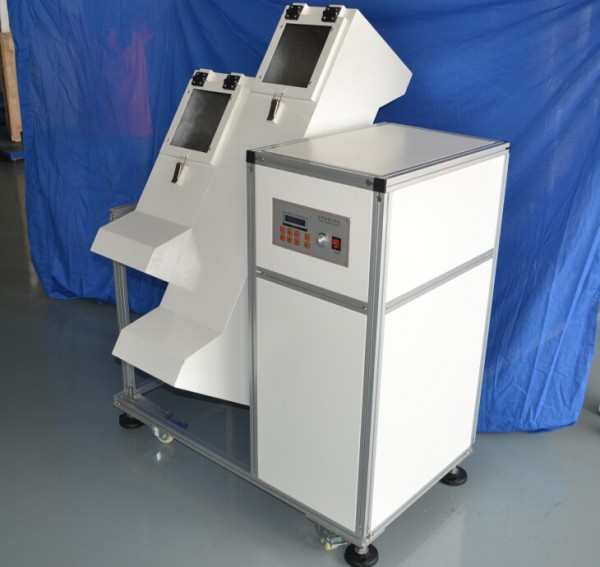

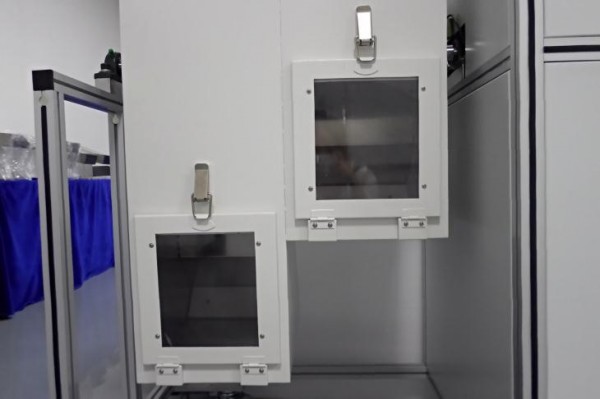

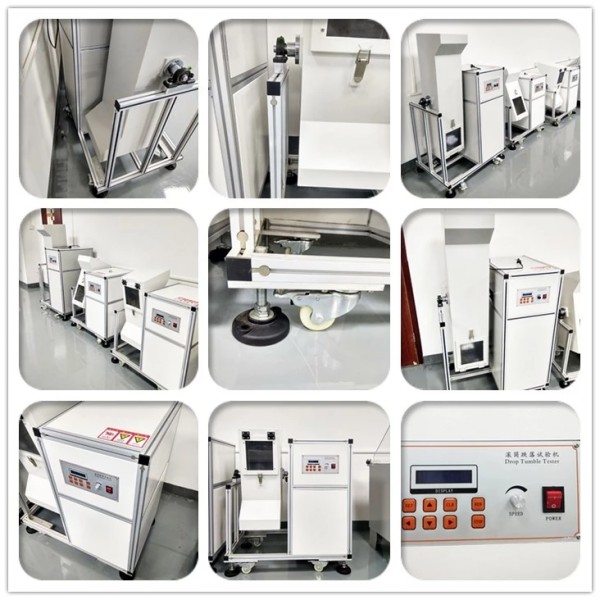

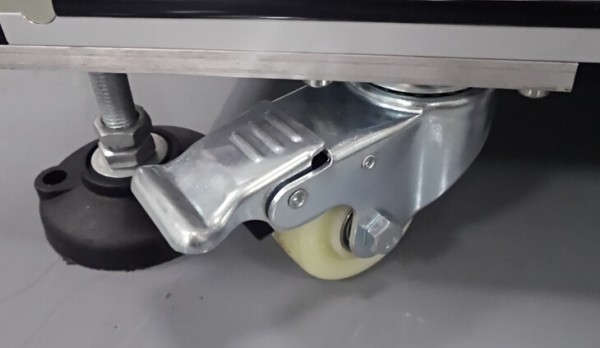

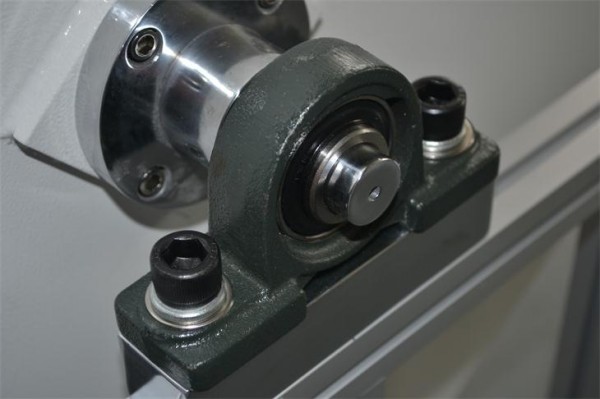

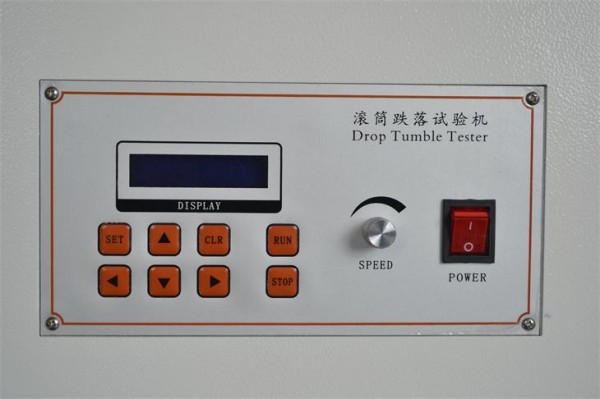

Real show of our Automatic Tumbling Barrel Drop Test Machine

FAQ
1.Are your company a trading one or a factory ?

Factory + trade (integration),12 years focusing on test instruments field,5 years exporting experience.

OEM is also acceptable for us.

2.How to choose the most suitable products?

Our professional team will give you the best suggestion as long as you tell us what kind of test you

need to do and the required specification.

3.What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.

4.Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

5.Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to

arrange hotel and pick up you from airport.

6.Do you have customers of our country before?

Now our testing machines have been sold to more than 120 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,

Brazil and so on.

7.How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.

8.How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.

9.What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and

debugging - balance payment - packing - delivery - customer receiving - after service.

10.How to install and use the product

The product is shipped with an operating instructions and video of English version.
