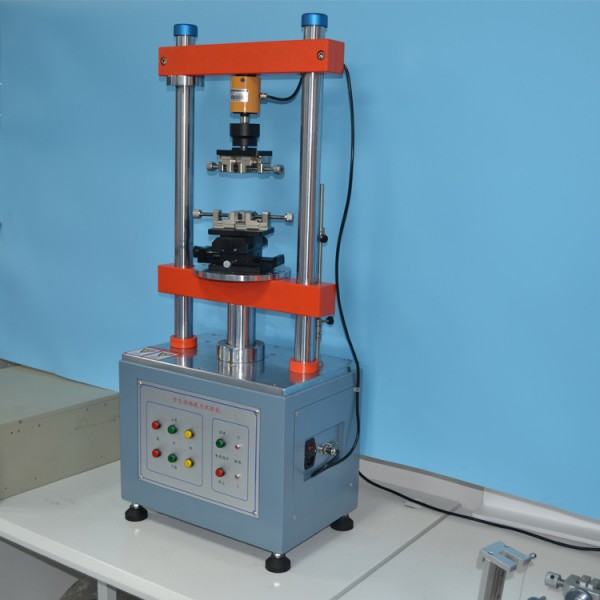

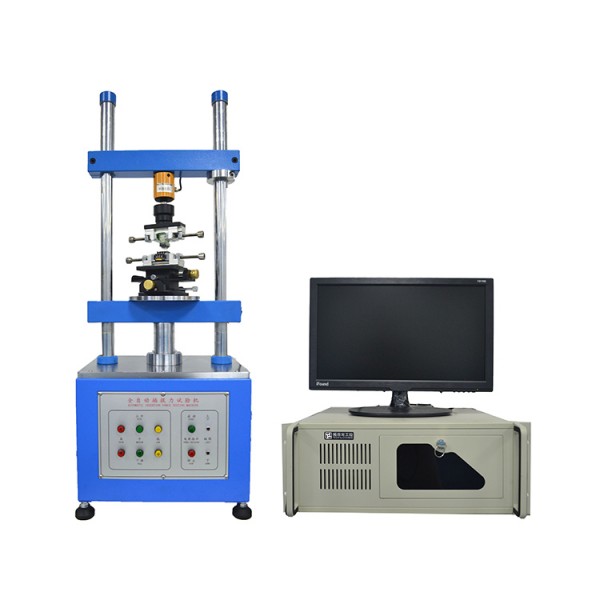

Automotive Connector Insertion Force Test Machine



Summary:

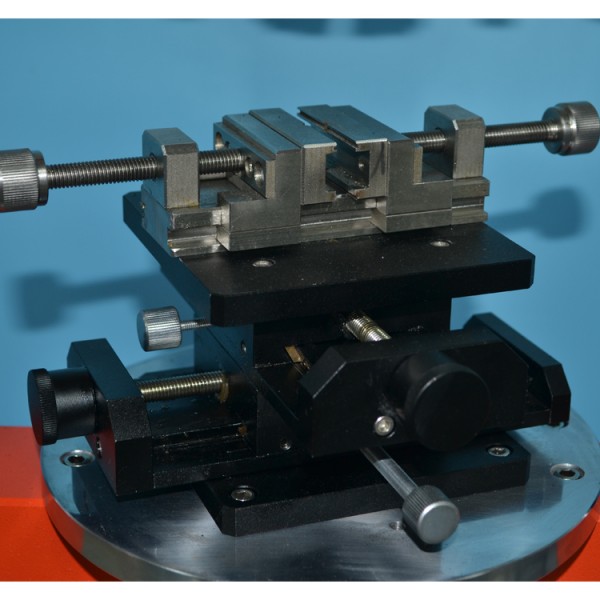

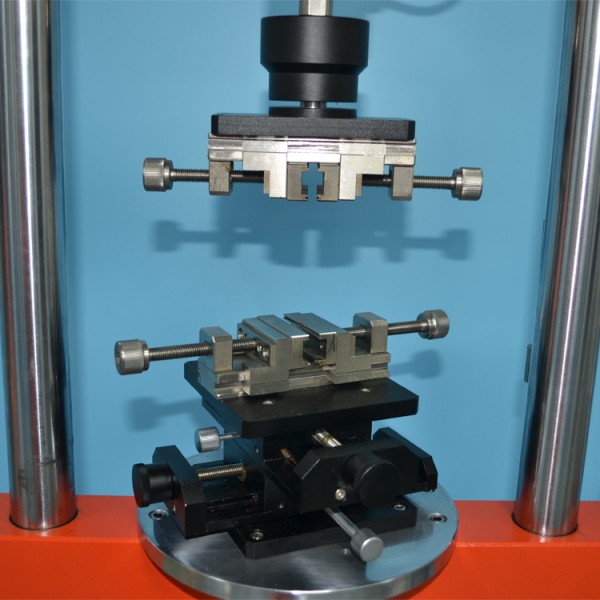

Automotive Connector Insertion Force Test Machine used in various kinds of connectors for plug in and plug out force test, equip with automatic device for adjustment centre site and special grips so that it can get the precision insert force; Adopt Chinese Windows version software frames setting which is easy for operation and can storage for test data's (test condition, insert stroke curve graph, lifetime curve, inspection report etc.) Match with motional impedance test system, can do insertion test as well as motional impedance test and drawing together. (Load-stroke-impedance curve).



Test Items:

Test hole plug connector.
Test row of the connector plug
Life test plug connector.
Single-pin connector and plastic Retention Test
Connector test
Impedance measurements can be performed simultaneously (optional)
Various compression, tensile breaking strength test

Features:

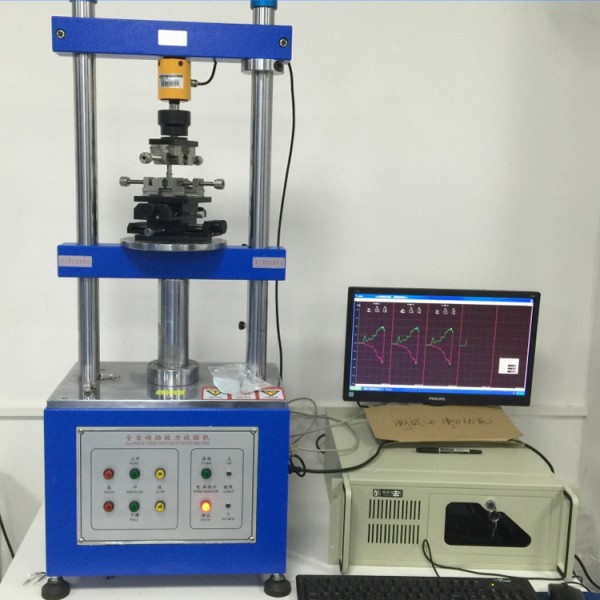

1.All the testing informations are setting by the computer and it can automatically store: testing condition,test result,(load-displacement),curve,life decay curve and automatically generate reports.

2. High precise:Load resolution:0.01gf,Displacement:0.001mm

3. Adopting high precision explosion Load Cell,Repeated errors:0.01%

4. High stability: adopt Japan Panasonic servo motor drive and no space, no ground ball screw drive, can eliminate noise and resonance.

5.Can enter the upper and lower limit conditions and  automatically rebel the test results Passed or Fail, the maximum, minimum, average and standard deviation, etc.

Specifications:

Load capacity		2kg, 5kg, 20kg, 50kg(optional)
Unit switch over		gf, kgf, lbf, N
Resolution		0.001kg
Load precision		±0.2%
Maximum travel		150mm
Test speed		0~200mm/min
Speed precision		0.5%
X,Y axis movement range	0~75mm
Displacement resolution	0.01mm
Dynamical System	Panasonic servo motor
Size	360*260*940mm
Weight	70kg
Power	220V,50HZ / Customized
