High Precision Key switch load displacement curve tester

Applications

The High Precision Key switch load displacement curve tester is suitable for all kinds of buttons and switches ( load - stroke ) curve test, using WINDOWS Chinese window setting screen, the operation is simple and convenient, and all the data can be stored ( test conditions, load curve, test results, test report and so on. This machine adopts the servo motor drive, can provide high accuracy ( load - stroke ) measuring, and can get the key and switch curve completely accurate test.

Testing items:

• Rubber button (load-dispalcement) testing
• Metal shrapnel button (load-displacement) testing
• Cellphone,controller button (load-displacement) testing
• All kinds of buttons,keyboard life decay experiment

Features:

• All the test data set and chosen by the computer automatically saved: test conditions, test results, (load - displacement) curve \ lifetime decay curve, and automatically generate reports.
• High precision:load resolution is 0.01gf,displacement resolution is 0.001mm.
• Adopt high precision explosion proof Load Cell,repeatability error:0.01%
• High stability:adopt Japan Panasonic servo motor drive seamless system-level, non-grinding ball screw drive, the machine can eliminate noise and resonance.
• Together with a belt to ensure the stability of transverse displacement profile.
• Can enter the upper and lower limit conditions, automatically determine the test results Passed or Fail, and the maximum, minimum, average, standard deviation, etc.

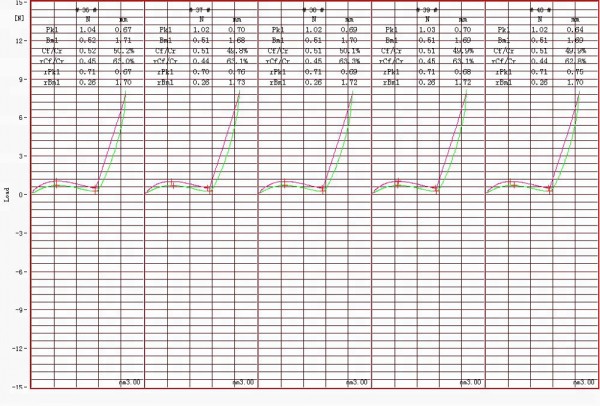

•  Peak Force, Return Force, Distance and Click rate can directly display the values in the chart, does not need manual calculation.
• Measurement graphs by computer memory can always zoom in and zoom out, a piece of A4 paper can be arbitrarily designated place lots of graphs.
• Determination exclusively eucalyptus can be input on the value of the higher and lower limit specifications, measurement results can automatically determine the OK or NO.
• Enter the maximum measured stroke and load, the computer automatically controlled.
• Load units display N, Ib, gf, kgf can select freely .
• Computer directly print and storage load stroke curves, check the report. (No graph paper, general A4 paper is OK.)
• Test data is stored on the hard disk (each piece of data can be stored and unlimited).
• Test conditions are setted by the computer screen (including test stroke, speed, frequency, compressed , pause time, etc.).
• The rise of the content of inspection report can be modified at any time (Chinese or English).
• The inspection report can be generated automatically, without further input.
• Inspection reports can be converted to Excel and other instruments report format.

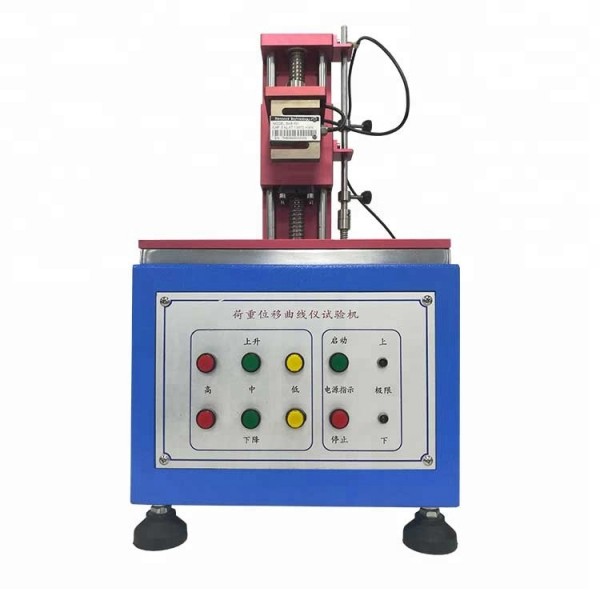

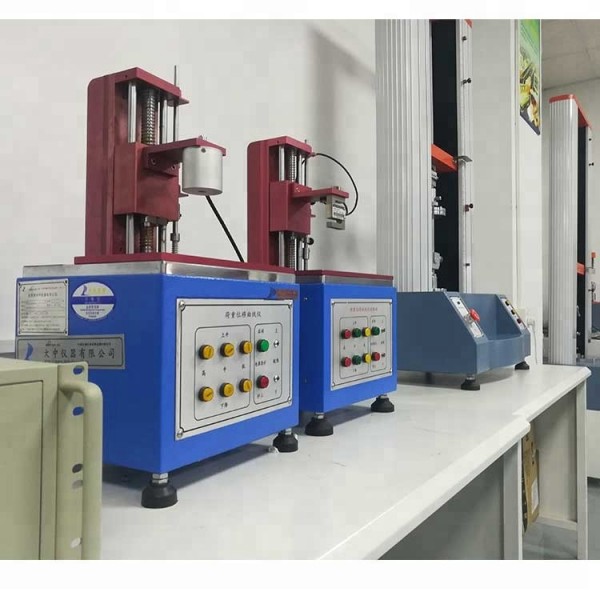

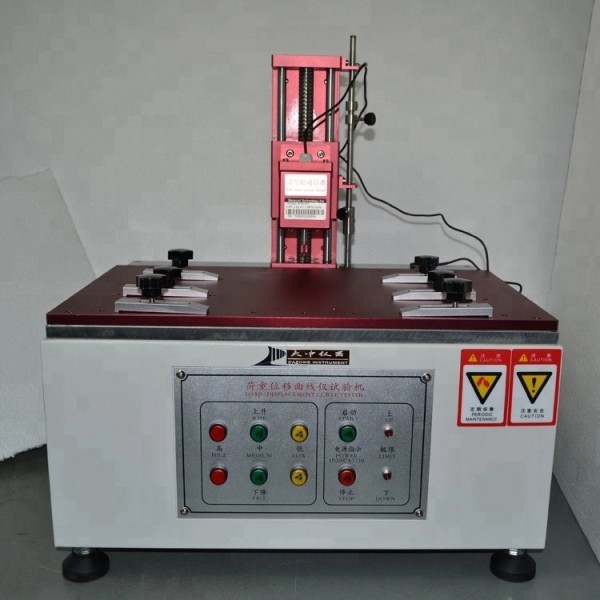

 Real imagines-we have different color can be chosed, and we can also customize according your samples.

Both of them controlled by computer, you can get the result from computer, and set the test result you wanna know .

Our Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Pre-sales service
24-hour Online contact
Choose the right model of the equipment
according to customer's request

Middle service
Give the best offer
Support customization
Do customer's request
Choose payment term you convenient.
Promptly production and delivery inform you in time.
Can provide invoice value as you like to decrease your tax

After sale service
1 year warranty service and all life maintenance
Provide Free information (1. Product Instruction 2. Product
operation instruction/video 3. Experiment Test)
Remote control technical consult
Free installation DVD
Maintenance plan
