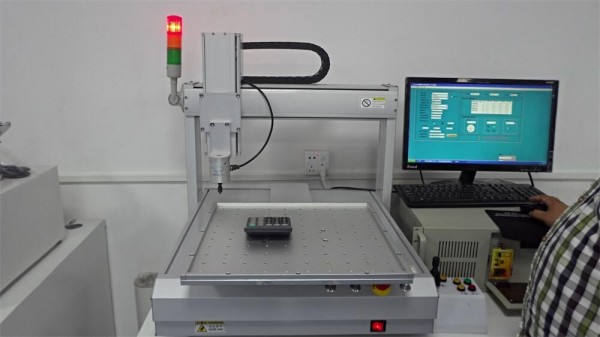

Button Life Testing Machine,keyboard switch tester
Lab Equipment Automatical button life tester /machinery
Video Link:https://www.youtube.com/watch?v=bSmUQEpJAvM
This tester is suitable for various stress tests. set coordinates,then do test automatically, record and display the test values.All the information/data can be stored (test conditions,load displacement curves,life curves and check report etc.
On the keyboard,screen,display,pad multipoint pressure automatic measurements and rebound.
Test Items- Lab Equipment Automatical button life tester /machinery
- General product automatic multipoint strength test.
- buttons (keyboard) curve test (multipoint displacement automatically).
- LCD pressure resistance test (multipoint displacement automatically).
- Stress life test (multipoint displacement automatically).
Functions- Lab Equipment Automatical button life tester /machinery
- Function of testing force and displacement on conduction point.
- Setting the value of impedance on Conduction point .
- Dynamic impedance test system.
Parameter- Lab Equipment Automatical button life tester /machinery
| Model number | DZ-201 |
| Product name | Lab Equipment Automatical button life tester /machinery |
| Test load range | 5kgf/ 20kgf/ 50kgf |
| Minimum height | 1gf/ 2gf/ 10gf |
| Z axis test stroke | 150mm |
| Z axis display stroke | 0.1/0.001mm |
| Test speed range | 1~200mm/min |
| X axis travel | 300mm/500mm |
| Y axis travel | 200mm |
| Transmission structure | Ball lever |
| Drive motor | Servo motor(triaxial) |
| Dimension | 300*270*500(W*D*H) |
| Weight | 180Kg |
| Power supply | AC220V |
Feature- Lab Equipment Automatical button life tester /machinery
1. Can be arbitrary input coordinates X,Y axis, the machine automatic move test.
2. Can input Max test stroke and load, Computer system automatically control and test.
3. Can set load, when value reaches the setting value,tester will pause or return.
4. Can set test stroke, when it reaches the setting value, tester will pause or return.
5. Can be directly tested and copy each trip point(0.01mm) and the load of the graphics.
6. Each measurement,graphics are available by the cross cursor tracking trajectory, interpretation of corresponding load and travel value,minimum 0.01mm.
7. Print and stored on the hard disk(each stroke curve,the life curve,inspection reports).
8. Test data are stored on the hard disk(each data can be stored,unlimited)
9. Test condition is all in the computer screen set(including test load,stroke,speed,frequency,air compressor,pause time,etc.).
10. Inspection report up content can be modified at any time(Chinese and English are available).
11. Inspection report can be archived to Excel editor or directly through the network output.
