Automatic Video Measuring Machine 4030H
Designed and manufactured by Rational Precision Instrument, a company with more than 20 years of history in precision measuring systems, H series Video measuring machines are superior CNC systems and are widely used in the field of machinery, electronics, instruments, plastic products, etc. The series of machines have been effectively modified with the practical application experiences and valuable feedbacks from clients since the initial model was launched 13 years ago, and won the admirations from customers worldwide. You cannot afford to miss this if you are looking for a reliable, efficient and cost-effective measuring system.
Features:
1. The powerful proprietary measuring software to meet various and specific requirements of customers.
2. Auto focusing, auto edge finding, powerful programming, and auto measuring.
3. Adopts subpixel subdivision technique to improve resolving power of boundary.
4. Installed with joystick, which is also able to be programmed by software.
5. SPC data processing system and large quantities of jig measurement.
6. X, Y, Z axes all adopt servo control system - Quick positioning with high precision, and stable operation.
7. Adopts self-developed sophisticated embedded module control system installed within the instrument, which ensures a more stable operation.
8. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for sophisticated workpieces.
9. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
Product Description

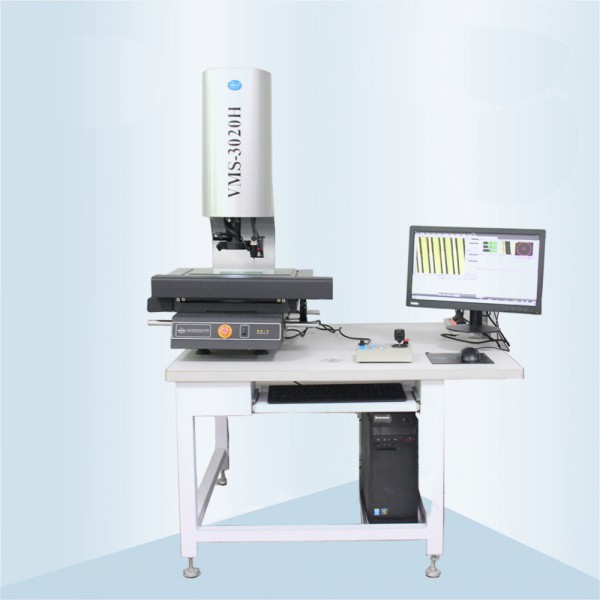

CNC Video Measuring Machine
|
Model |
VMS-2515H | VMS-3020H | VMS-4030H | |||
|
Working table |
Metal table size (mm) | 450×280 | 500×330 | 606×466 | ||
| Glass table size (mm) | 306×196 | 350×250 | 450×350 | |||
| Travel (mm) | 220×120 | 270×170 | 370×270 | |||
| Linear scale resolution | 0.5μm | |||||
| Indication error | E1XY=(2.5+L/100)μm (L is the length of the measured object. Unit: mm) | |||||
| Consistency error of origin in different sections | E0≤20 (every 100mm displacement in Z axis) | |||||
| Dimension (mm) | 760×600×900 | 760×600×900 | 970×670×940 | |||
| Weight (kg) | 146 | 168 | 266 | |||
| Z-axis travel (mm) | 150 (Can be customized to 300mm) | |||||
| Accessories | 1X lens tube (Standard) | 0.5X lens tube (Optional) | Working distance (mm) | |||
| Zoom lens | 0.7-4.5X | 0.7-4.5X | ||||
| Additional lens | Magnification | Field of view (mm) | Magnification | Field of view (mm) | ||
| 0.5X (Optional) | 10-64X | 22-3.4 | 5-32X | 44-6.8 | 175 | |
| 1X (Standard) | 20-128X | 11.1-1.7 | 10-64X | 22-3.4 | 92 | |
| 2X (Optional) | 40-256X | 5.5-0.9 | 20-128X | 11.1-1.7 | 36 | |
| Brand PC (Standard), joystick (Standard) | ||||||
|
Video system |
1/2” color CCD camera. Brand zoom lens (Optional) | |||||
| Zoom lens magnification: 0.7X~4.5X. Total Magnification: 20~128X (19.5 inches display. Resolution: 1440*900) | ||||||
| Field of view: 11.1mm~1.7m | ||||||
| Power supply: AC 100-240V 50/60Hz. Power: 250W (excluding PC) | ||||||
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Pre-sales service
24-hour Online contact
Choose the right model of the equipment
according to customer's request
Middle service
Give the best offer
Support customization
Do customer's request
Choose payment term you convenient.
Promptly production and delivery inform you in time.
Can provide invoice value as you like to decrease your tax
After sale service
1 year warranty service and all life maintenance
Provide Free information (1. Product Instruction 2. Product
operation instruction/video 3. Experiment Test)
Remote control technical consult
Free installation DVD
Maintenance plan
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
