Optical Manual CNC coordinate measuring machine with system price
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, telectronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Specifications:
|
Model |
VMS-2010G |
|||||
|
Working table |
Metal table size (mm) |
500*330 |
||||
|
Glass table size (mm) |
350*250 |
|||||
|
Travel (mm) |
300*200 |
|||||
|
Linear scale resolution |
0.5μm |
|||||
|
Indication error |
E1XY=(2.5+L/100)μm (L is the length of the measured object. Unit: mm) |
|||||
|
Dimension (mm) |
970X670X940 |
|||||
|
Weight (kg) |
140 |
|||||
|
Z-axis travel (mm) |
200mm (Can be customized to 300mm) |
|||||
|
Accessories |
1X lens tube (Standard) |
0.5X lens tube (Optional) |
Working distance (mm) |
|||
|
Zoom lens |
0.7-4.5X |
0.7-4.5X |
||||
|
Additional lens |
Magnification |
Field of view (mm) |
Magnification |
Field of view (mm) |
||
|
0.5X (Optional) |
13.3X-85.5X |
16.2-2.6 |
6.65X-42.7X |
32.4-5.2 |
175 |
|
|
1X (Standard) |
26.6X-171X |
8.1-1.3 |
13.3X-85.5X |
16.2-2.6 |
92 |
|
|
2X (Optional) |
53.2X-342X |
4-0.7 |
26.6X-171X |
8.1-1.3 |
36 |
|
|
Brand PC (Standard), joystick (Standard) |
||||||
|
Power supply: AC 100-240V 50/60Hz. Power: 50W (excluding PC) |
||||||
Features
1. Varieties of lighting solutions to meet various or specific requirements of customers.
2. Effectively support data processing, data display, data input, and data output
3. Linear scales supports the resolution of 0.5um
4. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.

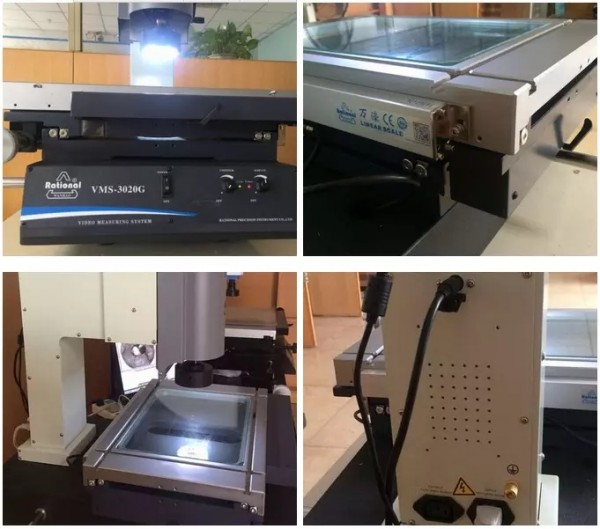

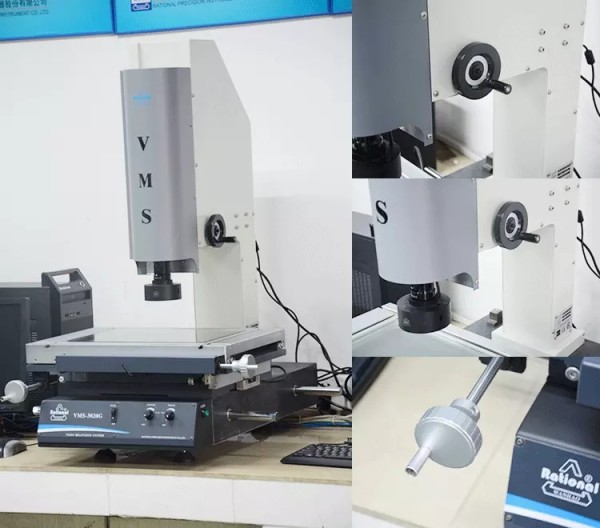

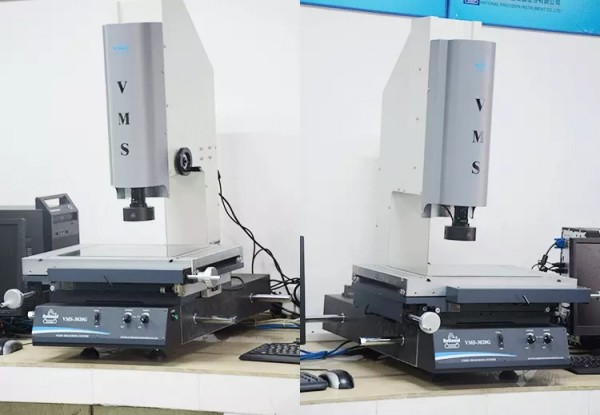

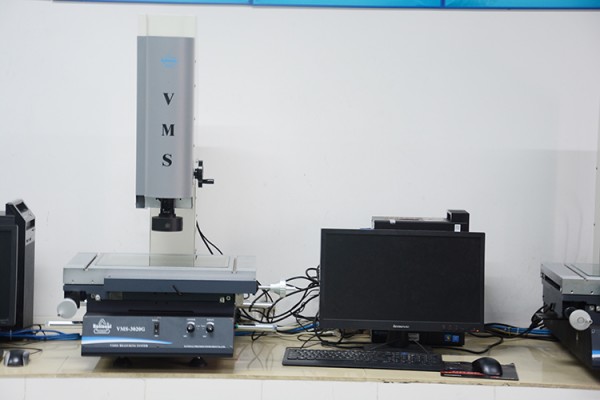

Show:
Our Services
Hengxin is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software, etc.
