Digital Profile Projector,profile projector price

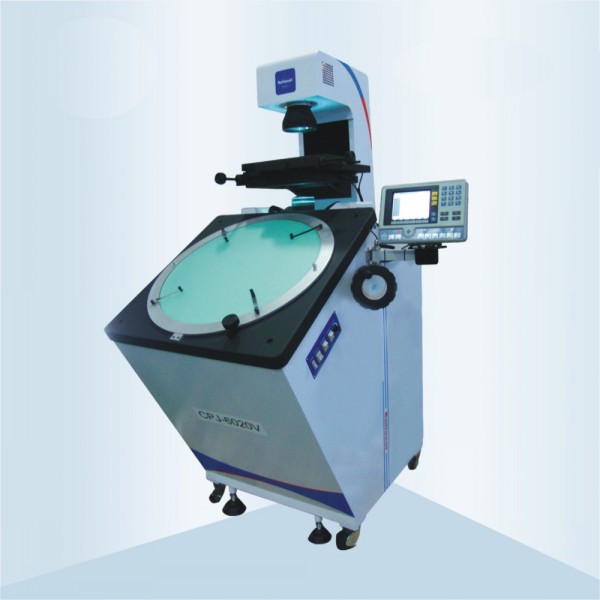

Floor Type Profile Projector CPJ-6020V
Features:
CPJ-6020V Floor Type Profile Projector is a high precision and high efficiency optical measuring instrument integrating optics, mechanics and electronics. It is widely used in the field of machinery, instrument, meter, electronics, and light industry as well as in measuring chamber and laboratory of universities and institutes, research institutes and metrological verification department. This instrument can efficiently measure the geometric dimension and profile of various complicated shaped workpiece.
Product Description
Floor Type Profile Projector CPJ-6020V
| Model | CPJ-6020V | |||||
| X-axis Travel (mm) | 200 | |||||
| Y-axis Travel (mm) | 100 | |||||
| Metal table size (mm) | 404×265 | |||||
| Glass table size (mm) | 270×170 | |||||
| Resolution (μm) | 0.5 | |||||
| Indication error (mm) |
2.5+L/75 (L is the length of the measured object. Unit: mm) |
|||||
| Z-axis Travel (mm) | 50 (focusing) | |||||
| Weight (kg) | 360 | |||||
| Dimension (mm) | 1200×1140×1940 | |||||
| Projection screen | Size (mm) | 615 | ||||
| Rotary range | 0~360° | |||||
| Resolution | 1' or 0.01° | |||||
| Lens | Magnification | 5× (Optional) | 10× (Standard) | 20× (Optional) | 50× (Optional) | 100× (Optional) |
| Field of view (mm) | 120 | 60 | 30 | 12 | 6 | |
| Working distance (mm) | 242.8 | 143.2 | 85.5 | 92 | 48.5 | |
| Max. measuring height | 50 | 50 | 50 | 50 | 48 | |
|
Power supply: AC 100-240V 50/60Hz. Total power: 650W |
||||||
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Pre-sales service
24-hour Online contact
Choose the right model of the equipment
according to customer's request
Middle service
Give the best offer
Support customization
Do customer's request
Choose payment term you convenient.
Promptly production and delivery inform you in time.
Can provide invoice value as you like to decrease your tax
After sale service
1 year warranty service and all life maintenance
Provide Free information (1. Product Instruction 2. Product
operation instruction/video 3. Experiment Test)
Remote control technical consult
Free installation DVD
Maintenance plan
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
