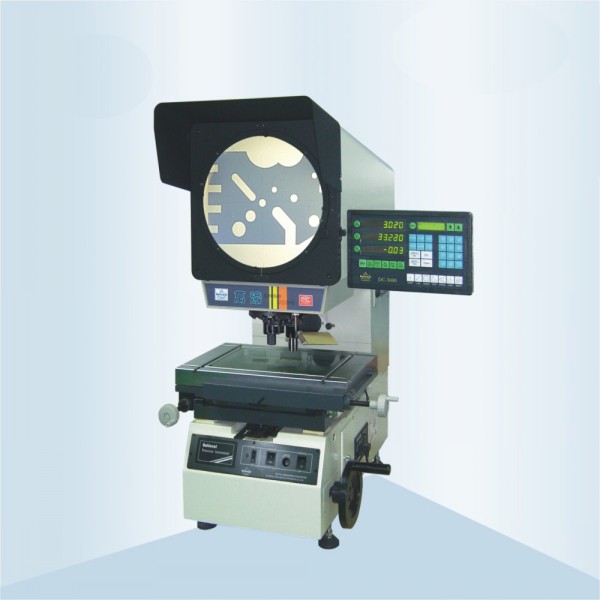

Digital Optical Comparator Measurement Machine, Optical Profile Projector CPJ-3000A Series
This profile projector is a set of optical, mechanical, electrical, computer integration, high precision optical measuring instruments. It can efficiently detect a variety of complex shape the contours of the workpiece size and surface status, such as templates, punching pieces, cams, threads, gears, form cutter and other tools, cutting tools and parts.
Applicable Industry:
This profile projector is widely used in machinery, molds, tools, instruments, electronics, light industry, measuring rooms and workshops are essential for a kind of test measurement equipment.
Optical Profile Projector Usage:
1. Good Quality Multi-function Profile Projector CPJ-3015 is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.
2. It can inpect all kinds of surface and outline of compli-cated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
3. It's widely used in the trade of mechanism, meter, electricity, ligt industry, college, research institute and measurement-inslecting department.
4. Measurement data can output and connect printer and computer.
Technical Parameters:
| Model | CPJ-3015A | CPJ-3020A | CPJ-3025A | CPJ-3030A | CPJ-3040A | |
| Table | The metal table’s size | 354 x228 mm | 404 x228 mm | 450 x280 mm | 500 x330 mm | 606 x466 mm |
| The glass table’s size | 210 x160 mm | 260 x160 mm | 306 x196 mm | 321 x221 mm | 450 x350mm | |
| X-axis travel | 150mm | 200mm | 250mm | 295mm | 400mm | |
| Y-axis travel | 100mm | 100mm | 150mm | 195mm | 300mm | |
| Z-axis travel | 100mm (for focus) | |||||
| X, Z-axis digital display resolution , ≤ (3 + L/200) μm | 0.0005mm | |||||
| coordinate indication error | (2.5 + L/100) μm | |||||
| Size |
L×W×H(mm) |
780×780 × 1100 | 780×780 × 1100 | 810×780 × 1120 | 900×780 × 1120 | 1040×780 × 1120 |
| Weight | Unit(kg) | 160 | 160 | 180 | 250 | 250 |
| Projector screen | Screen size (mm) | Ø 312 Used range>Ø 300(with the meter line) | ||||
| Screen rotary rang | 0°~360° | |||||
| Rotation digital resolution | 1′or 0.01° | |||||
| Lens | Magnification |
10 X (Option) |
20X (Option) |
50X (Option) |
100X (Option)
|
|
| Working distance(mm) | 77.7 | 44.3 | 38.4 | 25.3 | ||
| Field of view in object(mm) | Φ30 | 15 | Φ6 | Φ3 | ||
| Max.workpiece height(mm) | 90 | 90 | 90 | 90 | ||
| Data Processing System | DC-3000 multi-function data processing system, appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance. | |||||
| Options | Micro-printer, optical Edge Detector, M2D software; detailed description see Annex projector. | |||||
| Power | 110V-240V(AC), 50/60HZ, Total power=400W | |||||

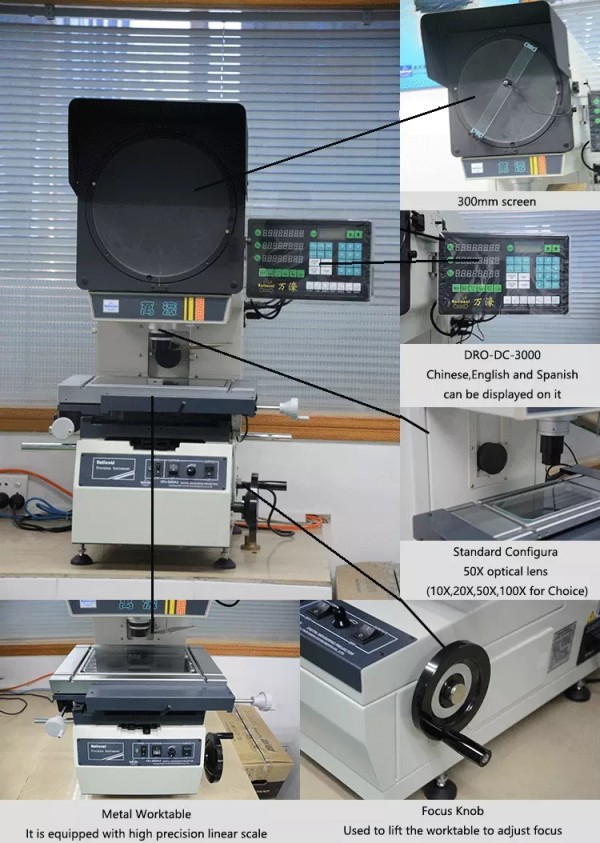

Detail pictures:
