horizontal profile projector,profile projector machine
Product brief:

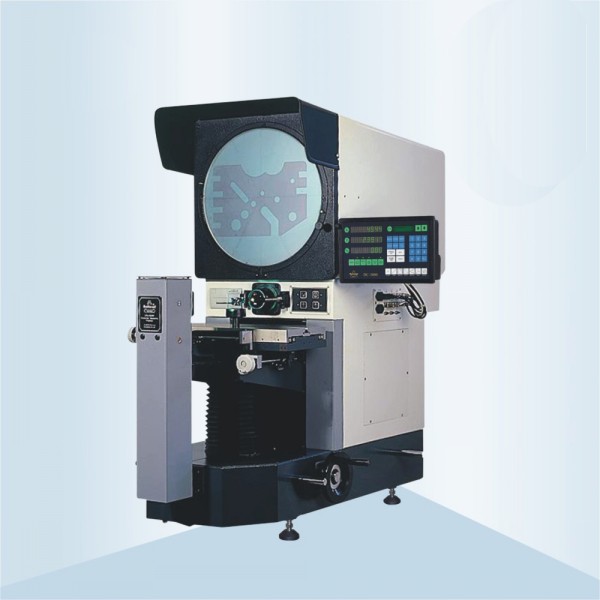

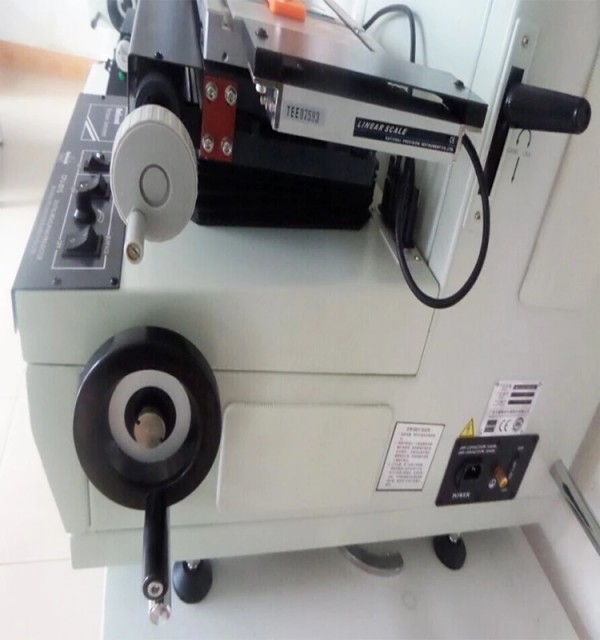

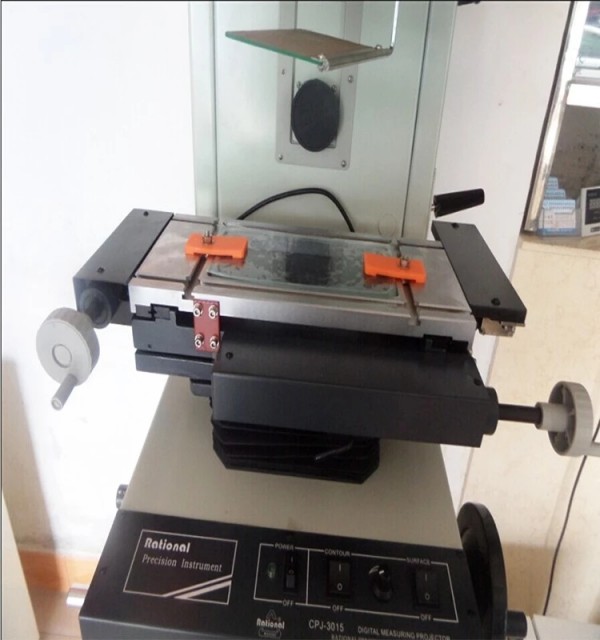

Horizontal Profile Projector, an ergonomic measuring instrument with reliable mechanical structure and high precision magnification, can effectively and efficiently inspect profile, section, surface and outline of complicated workpiece.
This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.
Specifications:
| Model | CPJ-3020W | CPJ-4025W | ||||
| X-axis Travel (mm) | 200 | 250 | ||||
| Y-axis Travel (mm) | 100 | 150 | ||||
| Worktable size (mm) | 400×150 | 450×200 | ||||
| Swing range | ±15° | ±15° ( can be custom made to ±25°) | ||||
| Resolution (μm) | 0.5 | |||||
| Indication error (mm) |
X, Y-axis: (2.5+L/100). Z-axis: 3.5+L/50 (L is the length of the measured object. Unit: mm) |
|||||
| Z-axis Travel (mm) | 75 (focusing) | 100 (focusing) | ||||
| Weight (kg) | 160 | 240 | ||||
| Dimension (mm) | 1090×830×1010 | 1215×646×1210 | ||||
| Projectorscreen | Size (mm) | 300 | 400 | |||
| Rotary range | 0~360° | |||||
| Resolution | 1’ or 0.01° | |||||
| Lens (CPJ-3020W) | Magnification | 10× (Optional) | 20× (Optional) | 50× (Optional) | 100× (Optional) | |
| Field of view (mm) | 30 | 15 | 6 | 3 | ||
| Working distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | ||
| Lens (CPJ-4025W) | Magnification | 5× (Optional) | 10× (Standard) | 20× (Optional) | 50× (Optional) | 100× (Optional) |
| Field of view (mm) | 80 | 40 | 20 | 8 | 4 | |
| Working distance (mm) | 93.7 | 103.9 | 95.1 | 65.7 | 35.0 | |
| Data processing system | Multi-functional DRO DC-3000 | |||||
| Illumination | Transmission: 24V/150W halogen lamp. Reflection: 21V/150W halogen lamp. | |||||
| Accessories | Printer, edge detector, Measuring software M2D-CPJ, etc. | |||||
|
Power supply: AC 100-240V 50/60Hz. Total power: 450W |
||||||
Packaging & Shipping
Packaging Details:
WOODEN CASE
One case including one piece
Packaging size : 1090×830×1010
Volume: 0.95CBM
Net weight : 160kg
Gross weight : 200kg
Delivery Detail: Shipped in 7 days after payment
Our Services
Hengxin is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software, etc.
