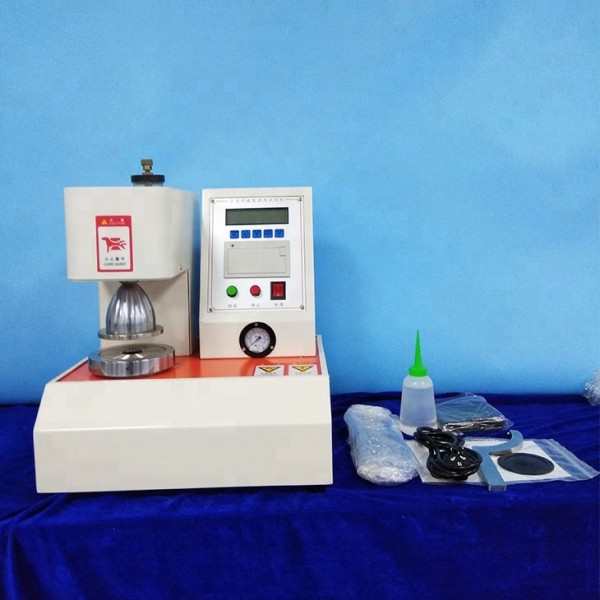

Paper Bursting Strength Test Machine
Product Description
The usage:
Paper Bursting Strength Test Machine is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The GT-7013-ADP type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
Main technical parameters:
| Capacity (Optional) | High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2) |
| Unit (switchable) | Kpa, psi, kg/cm^2 |
| Accuracy | ± 0.5% |
| Pressure Range | 250~5600kpa |
| Speed of Compression | High Pressure 170± 10ml/min |
| Specimen Clamping Force | >690kpa |
| Oil | 100% silicon oil |
| Sensing method | Pressure Transmitter |
| Indicating Method & Display | LCD |
| Material of the Ring | Stainless Steel SUS304 |

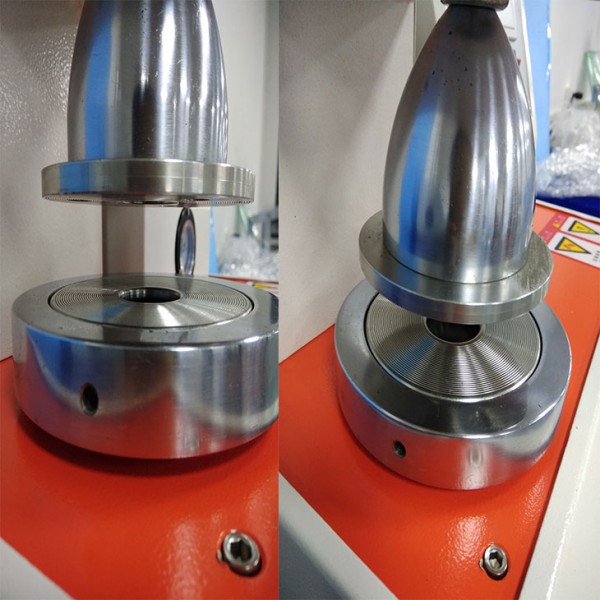

| Opening in Upper Clamp | 31.5 ± 0.05 mm Diameter |
| Opening in Lower Clamp | 31.5 ± 0.05 mm Diameter |
| Motor | Anti-vibration Motor 1/8 HP |
| Operation Method | Automatic |
| Dimension (L×W×H) | 445×425×525 mm |
| Weight | Approx. 70 kg |
| Power | AC220± 10%, 50 Hz |
| Power Capacity | 120W |
| Standard Configuration | Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle |
| Optional Configuration | Printer, Air Pump |
External appearance and specifications are subject to change without notice in the interest of product improvement.
