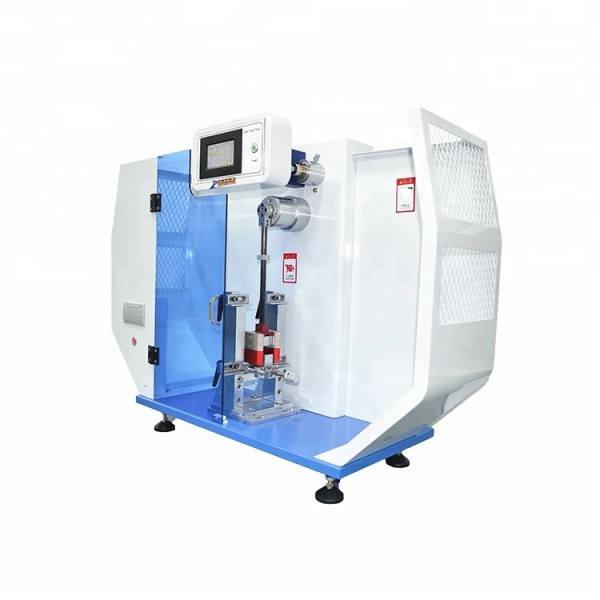

izod charpy impact testing machine,charpy impact test equipment
Digital izod impact meter, izod pendulum impact test
Uses-Digital izod impact meter, izod pendulum impact test
This impact tester is used to test impact toughness of hard plastic,GFPA,glass fiber reinforced plastics,ceramics, cast stone,electrical insulating materialand other non-metal material.It's a ideal testing equipments in chemical industry,R&D institution,quality controlling dept.
Character-Digital izod impact meter, izod pendulum impact test
1.This impact tester adopts micocomputer technology to manufacture,it's a intelligentize and digital impact tester.It can correct automatically energy loss caused by friction and wind drag.(After sample breakage,It's one-time finished for checking pendulum bob surplus energy and correcting the energy loss.)

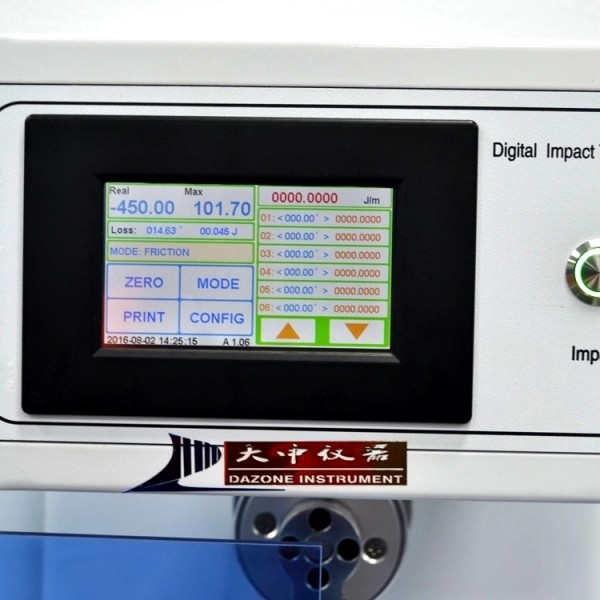

2.This impact tester is used to electronic display to show the test result, test result output by printer.Reading intuitive,improving the accuracy.
3.Adopts rotary encoder grating angular technology,high accuracy,good stability,big measurment ranges.Digital showing impact energy,impact strength,Pre-elevation ,lead angle,average value,engery loss ...
4.KJ-3090 is a combined impact tester,cantilever beam impact test and charpy impact test,designed by IS0 179,GB/T 1043,JB/T 8762 and ASTM D256.
Paremeter- Digital izod impact meter, izod pendulum impact test
|
Model |
ZL-3016 |
|
|
Charpy energy |
XJJ-5 |
XJJ-50 |
|
|
1J,2J,4J,5J |
7.5J,15J,25J,50J |
|
Impact velocity |
XJJ-5 |
XJJ-50 |
|
|
2.9m/s |
3.8m/s |
|
Pendulum elevation |
160° |
|
|
Center-to-center distance of the pendulum sample |
XJJ-5 |
XJJ-50 |
|
|
221mm |
380mm |
|
Pendulum torque |
Pd1=0.5155N.m |
Pd2=1.0311N.m |
|
|
Pd4=2.0622N.m |
Pd5=2.5777N.m |
|
|
Pd7.5=3.8662N.m |
Pd15=7.7324N.m |
|
|
Pd25=12.8888N.m |
Pd50=25.777N.m |
|
Jaw bearing spacing |
40mm,60mm,70mm,95mm |
|
|
Supporting cutting edge radius |
R=1mm |
|
|
Impact of the blade angle |
30°±1° |
|
|
Impact of the blade radius |
R=2mm |
|

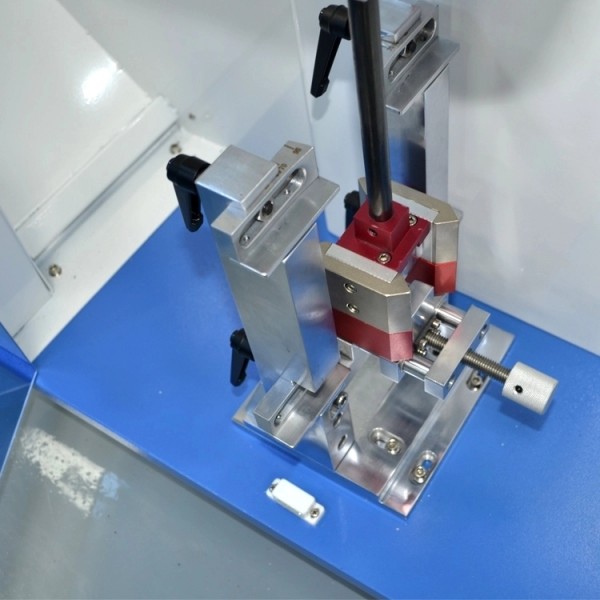

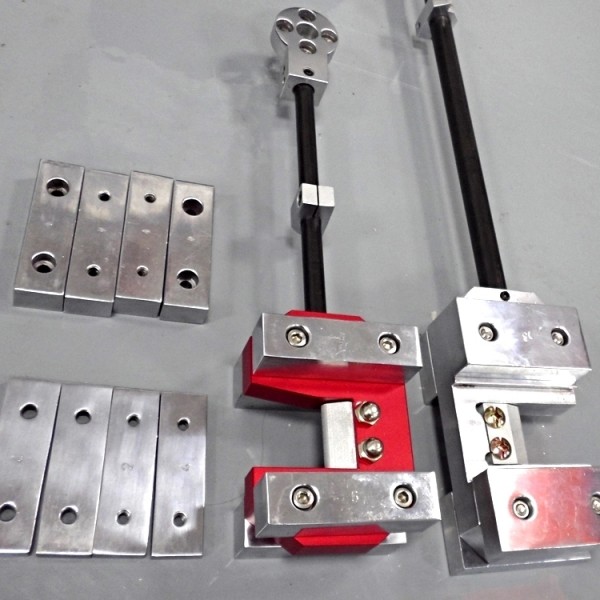

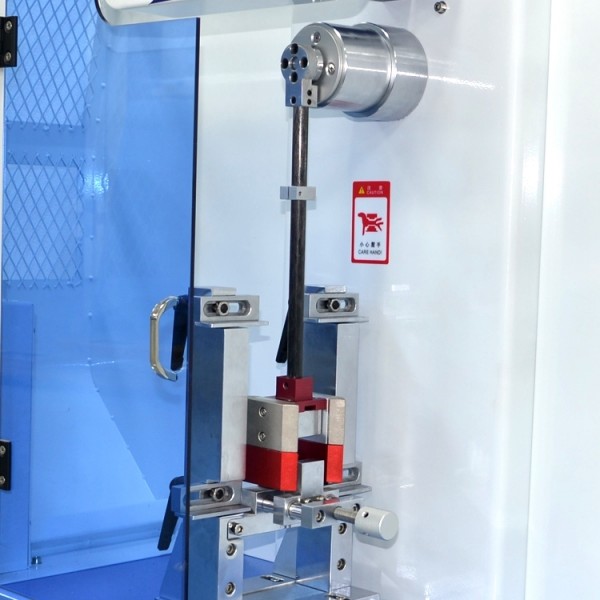

Details show-Digital izod impact meter, izod pendulum impact test
