Peel Force Tester,peel tester machine
Product Description
Introduction——Adhesive tape Peel strength testing machine
Adhesive tape peel strength tester can do all kinds of paper, film, rubber, plastic, fabric, waterproof material, non-woven fabrics, metal wire, metal foil,. Metal mechanics, and the longitudinal and transverse tensile, tensile and tear properties and mechanical properties test, composite film, pressure sensitive adhesive materials such as stripping, splitting, shear strength test, elongation at break test, heat sealing tensile, tear, strength test, etc.
Features——Adhesive tape Peel strength testing machine
1.Provide the capacity of two groups of test space, let the operator has a bigger scope, especially the raw material and finished product testing strength gap is bigger, the most suitable. On the type of be born type, mainly in the steel wire, small screw type of fabric and other industries the most commonly used. The biggest test of 50 kn force, long stroke and has two test space, can be installed capacity of two different sensors, used in testing strength difference is very big occasions, such as in the spring industry, steel wire, rubber and plastic materials such as the analysis of the test.
2.It can be pulled off automatically and the peak is maintained;Measuring strength of tension, pressure and input parameters;The tensile force value is determined, and the force value is elongated.Display curve (force value, displacement);Single point speed regulation (1 -- 500mm/min), single point speed regulation (1, 2, 5, 10, 20, 50, 100, 200, 500), stepless speed regulation can be set to any accuracy within 1 -- 500 range.The accuracy of each measurement is plus or minus 1%.The machine adopts closed-loop control method with high control precision.
Technical parameters——Adhesive tape Peel strength testing machine
| Range of speed | 50~500mm/min |
| Effective force ranage | 0.4%~100% |
| Motor | Panasonic sevor motor |
| Resolution | 1/250,000 |
| Capacity choice | 2,5,10,20,50,100,200Kg |
| Effective tensile space | 650mm/800mm/1000mm(your choice) |
| Accuracy | ±0.5% |
| Force relative error | ±0.5% |
| Displacement relative error | ±0.5% |
| Test speed relative error | ±0.5% |
| Accessories | computer, printer, system operation manual |
| Operation method | windows operation |
| Power | 220V ±10% 0.2KW/0.4KW |
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |

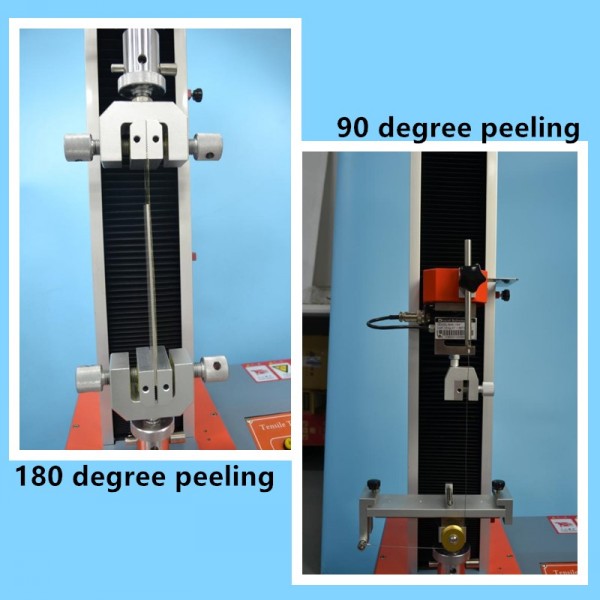

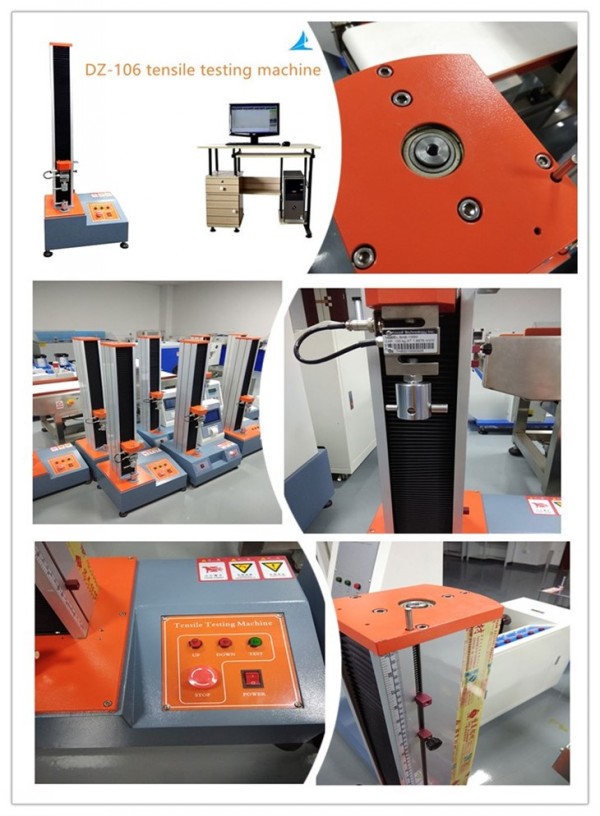

Details show——Adhesive tape Peel strength testing machine
Additional application——Adhesive tape Peel strength testing machine
1.Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
2.Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3.Deformation under defined load: Test deformation under defined load of tested sample
4.Load under defined deformation: Test load under defined deformation of tested sample
5.Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
