Adhesion Tape Rolling Ball Method Initial Tack Ball Test Machine
Description-- Adhesion Tape Rolling Ball Method Initial Tack Ball Test Machine
Tape Initial Adhesion Tester is used to test Adhesive strength of tape and judge the initial adhesion strength by the rolling distance of the steel ball.
Let the steel ball roll over the tape placed on the leaning surface, valuate its initial adhesion according to the size of the maximum ball that the given tape length can stick.
Principle-- Adhesion Tape Rolling Ball Method Initial Tack Ball Test Machine
Definition: Initial adhesion: Objects and pressure-sensitive adhesive tape with small pressure brief contact between the cohesive surface, the adhesion of adhesive tape that effect on objects called initial adhesion.
Inclined planet roll ball device: Through steel and pressure-sensitive adhesive tape with small pressure brief touching between the cohesive surface, the adhesion of adhesive tape that effect on steel to test initial adhesion.
Specification-- Adhesion Tape Rolling Ball Method Initial Tack Ball Test Machine
|
Brand Name |
DZ 352 |
|
Angle Range |
0 ~ 60° |
|
Panel Width |
120 mm |
|
Testable Area Width |
80 mm |
|
Standard Steel Ball |
1/32 inch ~ 1 inch |
|
Instrument Dimension |
320 mm (L) x 140 mm (W) x 180 mm (H) |
|
Net Weight |
6 kg |

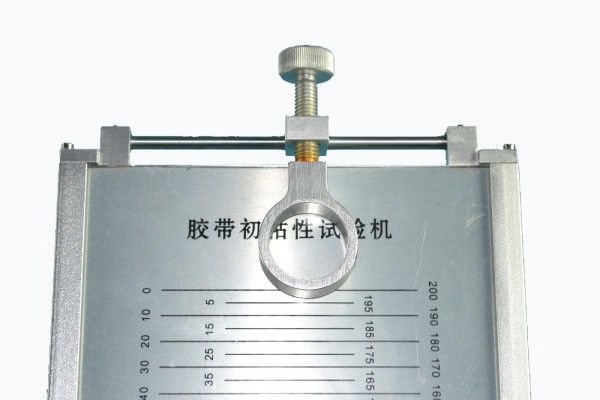

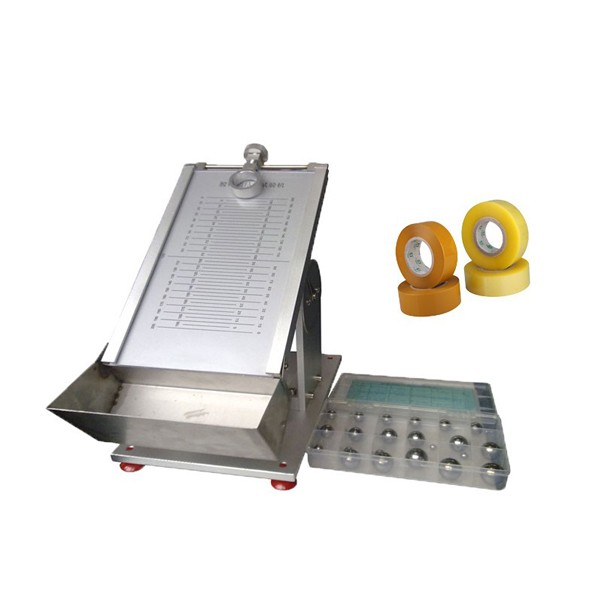

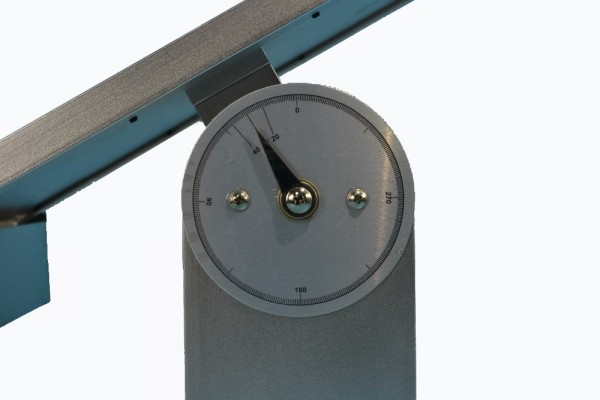

Images--Adhesion Tape Rolling Ball Method Initial Tack Ball Test Machine
