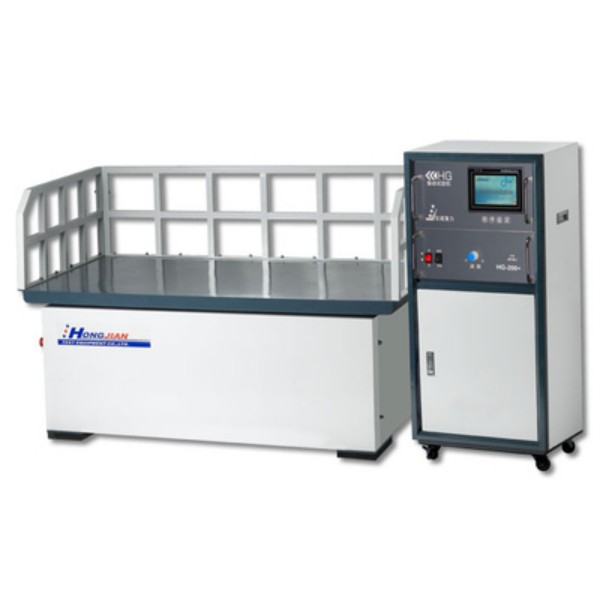

TZ-200 Simulated Transport Vibration Test Bench Testing Machine Tester High Quality
Main Features:
TZ-200+ type vibration test bench is asimulated transport vibration table with low price, large amplitude, easyoperation, etc., it is powerful and cost-effective, these large vibrationtables widely used in various industries.
· Strong function
Frequency division approach is adopted to analogbroadband random vibration
Each Frequency division contains a mainnatural frequency and satisfies the power spectrum of the sub-band.
Importfrequency controller, digital control and display frequency, PID adjustmentfunction, make the equipment work more stable and reliable.
Controlparameters are displayed synchronously in real time, without manualintervention.
Fixedfrequency and frequency sweeping operation functions to meet various testrequirements of different industries.
Rotaryvibration (commonly known as horse racing), in line with European and AmericanISTA transport standards.
· Excellent performance
Embedded amplitude prediction program ,easyto adjust .
Four-point synchronous exciting vibrationwith Excellent uniformity of vibration.
Frequency control is precise and balanced.
Add anti-interference circuit to solve theinterference of control circuit by strong electromagnetic field.
·Reasonable design
Low noise, synchronous squelch belt drive, DC motor slowstart.
Easy to operate, unique design, easy tooperate without auxiliary work, simple and safe.
The base of the machine adopts neutralsteel ,equipped with cushioning pads, which is easy to install and runssmoothly.
·Technical specifications
|
Maximum load (kg) : |
200 |
|
Manual frequency modulation range (Hz) |
5-50 |
|
Automatic frequency sweep range (Hz) |
5-50 |
|
Display accuracy (hz) |
0.01 |
|
No-load displacement range (mm) |
2～25.4 optional (fixed before leaving the factory) |
|
Vibration direction |
Rotary (commonly known as horse racing) |
|
Vibration mode |
Belt drive, four-axis synchronization |
|
Mock object |
Third-class (or above-class) road vehicle transportation vibration |
|
Simulated speed |
Third-class pavement 35km; middle class and sub-high grade pavement 50-60km |
|
Test mode |
Manual frequency / automatic frequency sweep |
|
Time set range |
0.01s～99.99h |
|
Work surface size(mm) |
1500(L)×1000(W)×460(H) |
|
Table body dimensions(mm) |
1550(L)×1150(W)×1050(H) |
|
Control box dimensions(mm) |
500(L)×400(W)×1060(H) |
|
Power supply voltage (V/Hz) |
380VAC±5% |
|
Power consumption(KVA) |
4.0 |
|
Cooling method |
Air-cooled |
|
Standard |
GB/T2423.10 |
|
Warm tip:As technology advances, product structure and parameters will be improve Constantly without notice. The sample information is slightly inc onsistent with the actual object, take practicality as standard. |
|
