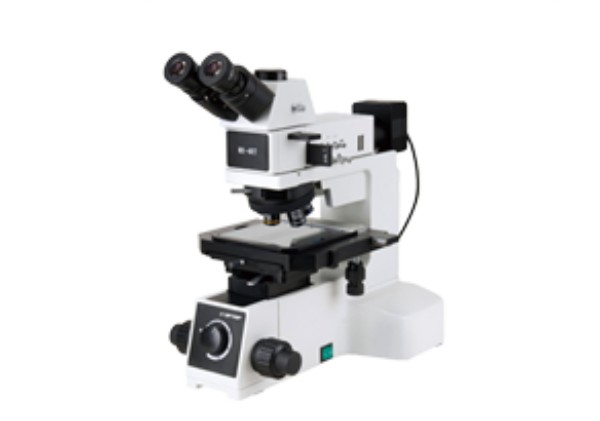

metallurgical microscope,metallographic microscope
Flexible system, excellent imaging performance and stable system architecture.MX4R series professional used in industrial testing and metallographic analysis. The operating mechanism according to ergonomic design. That can maximum reduce fatigue during using. Modular component design can freely assemble. MX-4R integrated bright-field,oblique illumination,polarizing, DIC differential interference and other observed functions,according to the practical application of functional selection.
MX4R can achieve X, Y directions 105mmx105mm range of movement.
The new design of the long working distance professional metallurgical objectiv- e , high power objective designed with semi-apochromatic technology.
| Model No | MX4R | MX4RT | |
| Alternative method of observation | Bright field/Oblique illumination/polarizing/DIC | Bright field/Oblique illumination/polarizing/DIC /Transmission light | |
| Optical system |
Infinity color corrected optical system |
||
| Eyepiece |
Hight eyepoint plan eyepiece PL10X/22 |
||
| Viewing head |
30°inclined gemel trinocular，reflect rate，binocular：trinocular=100：0or50:50 |
||
| objective |
LMPL infinity LWD Metallurgical objective 5X、10X、20X、50X、100X |
||
| Nosepiece |
Reversed quintuple nosepiece，with DIC slot |
||
| Stage |
4” mechanical stage，moving range 105x 105mm，with metal plate，right hand positionX、Y moving hand wheel，the platform with interface |
4” mechanical stage，moving range 105x 105mm，with glass plate, right hand positionX、Y moving hand wheel，the platform with interface |
|
| Body |
Coaxial coarse and fine focus system, Coarse adjustment range 33 mm；precision of fine adjustment:0.001mm,，with coarse adjustment stop and tightness adjustment。Built-in wide voltage 90V-240V, single power supply output |
Coaxial coarse and fine focus system, Coarse adjustment range 33 mm；precision of fine adjustment:0.001mm,，with coarse adjustment stop and tightness adjustment。Built-in wide voltage 90V-240V, dual power supply output |
|
| Reflective illumination System |
With iris diaphragm and aperture diaphragm, both centers adjustable,with filter slot and polarizing device slot, switch rod with oblique lighting. Single high-power5W LED, white, light intensity continuously adjustable |
||
|
With iris diaphragm and qperture diaphragm,both centers adjustable,with filter slot and polarizing device slot, switch rod with oblique lighting.12V100W halogen bulb，light intensity continuously adjustable (when selecting this group of lighting devices, use MX-6R-type microscope body) |
|||
| Transmission illumination system | Single high-power 5W LED |
Single high-power 5W LED, white, light intensity continuously adjustable. N.A.0.5 condenser with iris aperture diaphragm |
|
Under a variety of observation methods can be sharp andhigh-contrast microsco- pic image.
Accessories complete, well-equipped, the system can be flexibly combined with the functional expansion.
Ergonomic design, reliable system architecture.
