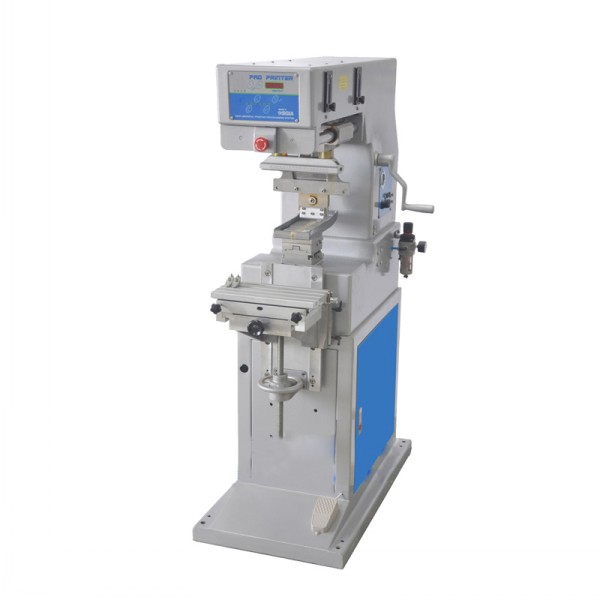

Hengxin one color traverse pad pad printing machine for plastic bottle jeans nursing bottles

Video Link: https://www.youtube.com/watch?v=LVL4Pt2gnC0&feature=youtu.be

Parameters:

Color                                              1

Max. Steel Plate Size ( mm)              200*200

Printing Area (mm)                          175*175

Max. printing Capacity (pcs/hr)          1600

Max. Height (mm)                           80

Ink Mode                                        Ink Well type

measurement(L*W*H)mm         1950*630*1500

Net Weight(kg)                                170

Power                                            110V or 220V 50/60Hz

Features:

·Advanced computerized system control
·pneumatically driven adopt from FESTO / AIRTAC, can adjust the movement speed of each part
·Built-in LED digital counter
·Emergency stop system to ensure the safety of operator
·Light-weight, strong aluminum cast machine frame
·Ink trays, work table and pads are independently adjustable for easy color registration
·Speed, pad and printing stroke are easily adjustable for different printing requirements

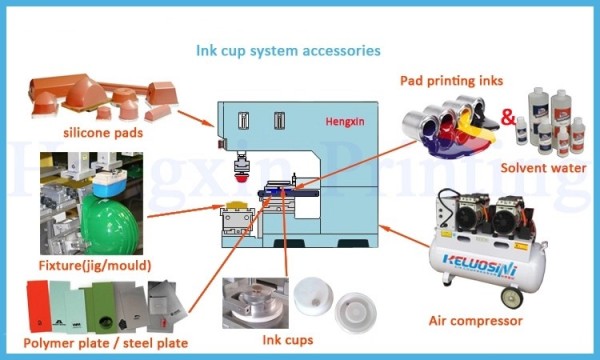

·Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning

Application:
1). The pad printer is for big size workpiece,automatic color registration.

2). Suitable for the products which surface is multi-color and needing exquisite
color printing,just need one fixture.

3). The product which is difficult in making plate and fixture can use it. it is suitable for cups,electrical appliances,barrels,stationary ,gifts and so on
