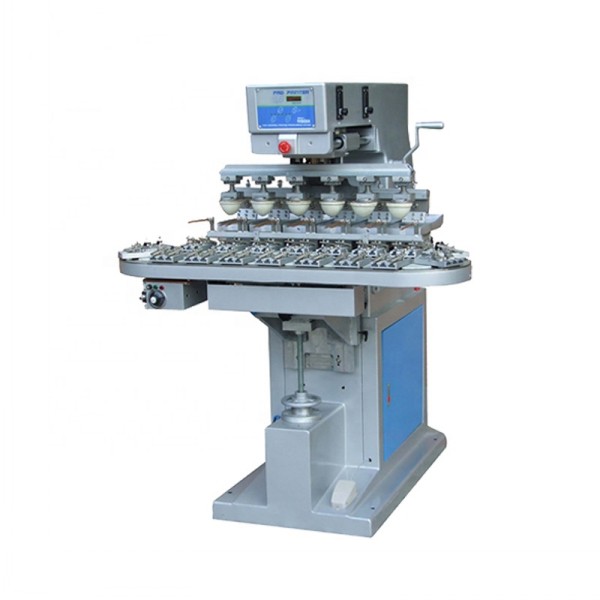

6 color pad printing machine,6 color pad printer
Product Description
VIDEO LINK:https://www.youtube.com/watch?v=P_ZXRlMQGik&feature=youtu.be
Major Technical Specification
| Model No | HX-M6/C (big 6 color pad priner with conveyor |
| Color | 6 |
| Max Steel Plate Size (mm) | 100 x 200 |
| Printing Area (mm) | 75 x 175 |
| Max Printing Capacity (pcs / hour) | 360 |
| Max Height (mm) | 80 |
| Ink Mode | Ink tray mode |
| Measurement (L x .W x H)mm | 1020 x 950 x 1500 |
| Net Weight (kg) | 250 |
| Power Input | 110V or 220V 50 / 60Hz |
Description:
1, Special design: with head lift bar to raise the whole printing head for easy change of ink, doctor blade, steel plate and etc.
2,Single chip micro processor control, easy to operate and user-friendly.
3,Assurance of quality with all SMC precision pneumatic parts.
4,Ink tray and work station easy to adjust in all directions.
5,With aluminum alloy frame and base, the machine is light and sturdy.
6,With automatic doctor blade system, cliche can be steel or plastic, easy to adjust and precise in printing, greatly improve efficiency and quality.
Our Services
pad printing machine has 1 year warranty and lifetime assist maintenance, full printing package kit support
