C-UV300 Mini UV curing machine, UV drying equipment for printing, UV dryer, UV conveyor drying machine







Technique data:



1. Power: 220V
2. UV tube equipped: 2000W * 2pcs
3. Conveyor belt width: 300mm
4. Transport speed: 5 ~ 25 M / min
5. Height of feeding throat: 30mm
6. Machine frame length: 1.2M
7. Outer dimension: 130*65*113cm
8. Packing size: 135*70*130cm
9. N.W. / G.W.: 102kg / 152kg



Application range:



UV drying machine is used for drying screen printing ink by UV ultraviolet (UV) light curing. It can be used in UV light oil, grinding, wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.





Main performance:



1. 2 sets of UV light source system configuration, according to the number of open lamp production needs.
2. PVC heat-resistant Teflon conveyor belt, Seiko produced, smooth operation noise
3. UV light height of chimney can be adjusted



Configurations:

 China domestic / import UV light is available, high gather reflective chimney

1. PVC Teflon conveyor belt
2. Stepless motor import from Taiwan
3. Manda brand cooling fan with high quality

Applicable range

Used for drying screen printing ink of UV ultraviolet (UV) light curing. Can be used in UV light oil, grinding, wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.



Configuration

1.  UV light, high gather reflective chimney

2. Teflon or stainless steel mesh belt

3. Stepless motor import from Taiwan

4. Manda brand cooling fan with high quality to ensure safety



Main performance

1. 2 sets of UV light source system configuration, according to the number of open lamp production needs.
2. Import Teflon conveyor belt, Seiko produced, smooth operation noise
3. The belt speed motor and speed stainless speed conveyor speed visual production situation
4. Convergent design, high light-gathering reflective chimney, instant drying speed, when the express.
5. UV light height of chimney can be adjusted
6. UV lamp working current can be shown by the master, UV analogue display system working condition
7. Equipped with exquisite cooling system, prevent the working chamber at high temperature, the effective protection of production work environment.

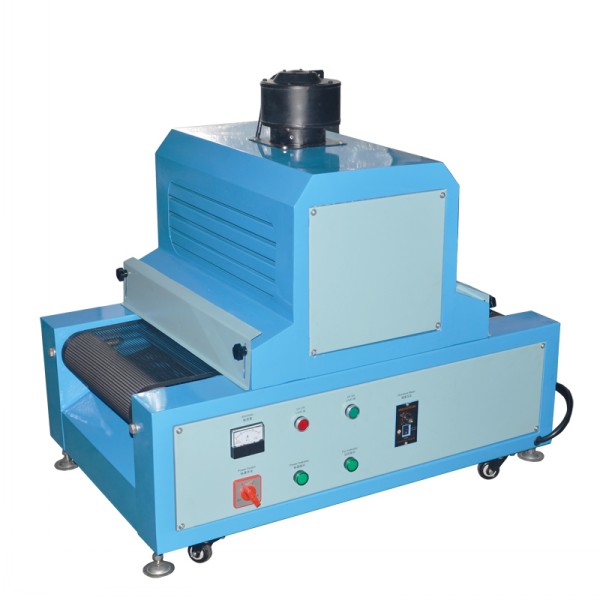

 product picture:
