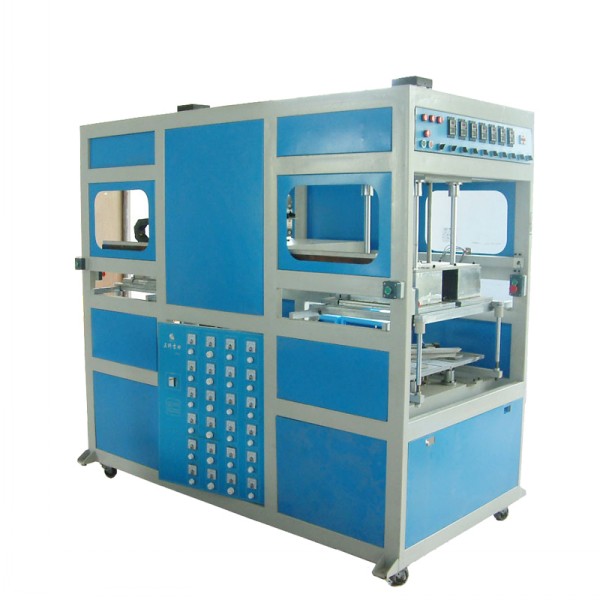

3D vacuum heat transfer machine for sandal/insole /slipper/shoe pads
HL-899B top quality 3D vacuum heat transfer machine for sandal/insole /slipper/shoe pads
VIDEO LINK: https://www.youtube.com/watch?v=aVjYIFTXonc
| Model No. | HP-899B |
| Processing principle | Thermal Shrinkage And Vacuum |
| Operating Station | Single working position (or double working position,double workbench work continuously) |
| Stamping Temperature | Room Temperature~399°C |
| Max Stamping Speed | 240-300pcs/hr |
| Vacuum Reservoir | 0.1m³-0.98mpa |
| Vacuum Pump | 1500w |
| Total Power | 12kw |
| Table Size | 660x460mm |
| Electrical Control | Human Machine Interface + PLC + imported photoelectric sensor |
| Power Supply | 380v/220V-----60/50hz |
| Machine Weight | 900kg |
| Machine Size | 2500x1800x2100mm |
1) Product process: Be able to finish special shape 3D products by one time, with high stability and low reject radio by heat expansion cylinder principle cooprate with vacuum moldin
2) Process feature: Full color transfer printers for three-dimensional products, covered design fully and all surface of product, it can also covered corner , fillet and concave corner without wrinkle, the workpiece surface are smooth, no wrinkle, snap and obcission.
3) Handle control: human-computer interface control operate, auti-visual, convenient operation and easy to learn
4) Electrical control: PLC control, photoelectric sensor and position adopt imported high quality inductor, operation stability,heat-up tempeture and process time use high precision digit to show, high work precision.
5) Adjust by machine: heat expansion cylinder use digit to control regulator, it can input pressure numerical, operate is convenient and auti-visual, adjust accuracy easily.
6) Oil pressure control: Adopt imported oil hydraulic pump, all of them are match with stainless steel oil vat, operate stability and long service life
7) Vacuum control: use imported vacuum pump, sub atmospheric pressure operation, fast reaction, low noise, long service life, low failure rate.
8) Work efficient:It can processing multi-products per time, double work position,double staging operation,high work efficient
9) Effect contrast:more effect and efficient than hydrographics transfer printing, improve the grade of product appearance and quality.
Picture:
