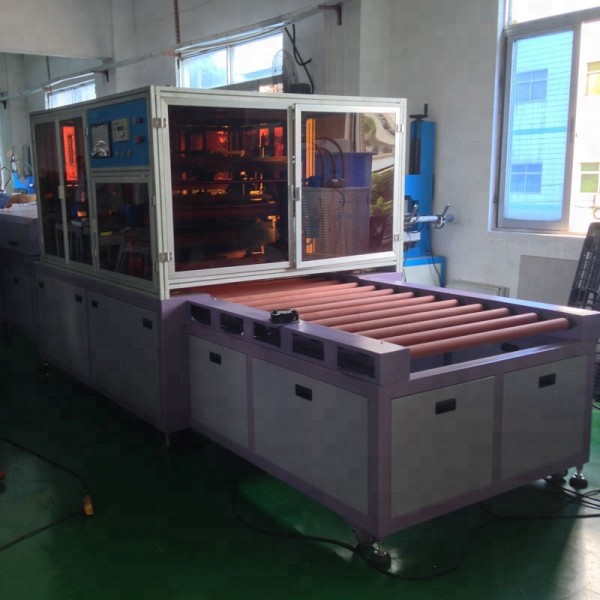

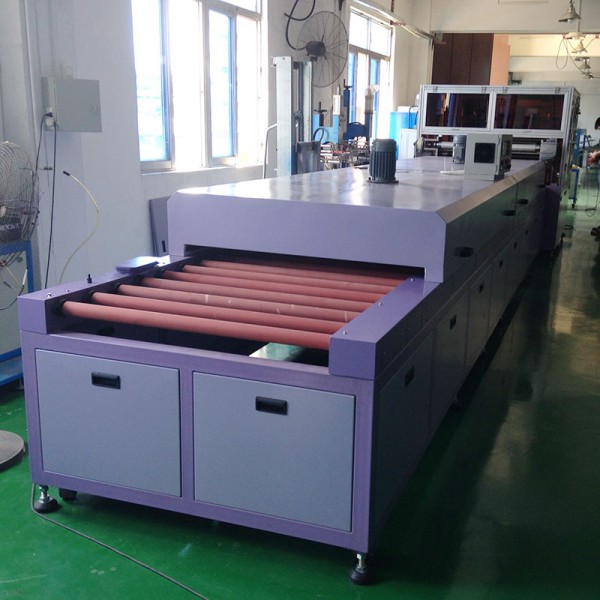

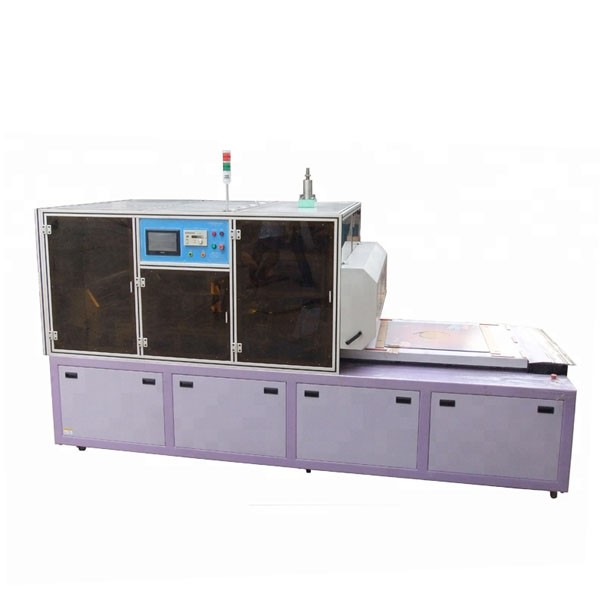

Flat Automatic Heat Transfer Machine
VIDEO LINK:
https://www.youtube.com/watch?v=IPEjI2iDRls
Product Description
Technical Parameters:
|
Machine Size |
L4100×W1650×H2300mm |
|
Stamping Size |
L1200×W1000mm |
|
Total Power |
16KW |
|
Heating |
2.0KW×6 |
|
Temperature |
MAX_250℃ |
|
Hot Glue Roll Size |
dia 150×L1000mm |
|
Oil Cylinder |
dia 100×150-100mm |
|
Hydraulic Pump Motor |
3HP |
|
Worktable Size |
L1500×W1000mm |
|
Worktable Motor |
Panasonic 2.4N.m |
|
Worktable Travel |
MAX_1630mm |
|
Paper shaft diameter |
dia 76mm |
|
Tensioner |
EPC015,1.2N.m |
|
Electrostatic precipitator |
VESD STC-HV501 |
|
Edge Correction |
PD-200 Servo Motor |
|
Edge Correction controller |
EPC-A10 |
|
Edge tracker |
PS-400 Ultrasonic sensors |
|
Photoelectric Tracker |
FOTEH SU-07R |
|
Paper feed to the motor |
YAKO 4N.m Stepper motor |
|
Waste paper shaft diameter |
dia 25/ dia 76mm |
|
Exhaust fan |
15W×4 |
|
Lighting Lamp |
20W×2 |
|
Use the power |
AC380V 50HZ |
|
Machine weight |
2500Kg |
5. Scope of application
Large flat products.
products of application:Decorative Glass, LED/LCD TV Frame, Display Frame, Door, Indoor decorative wall panels, Smallpox hanging board, Decorative folding screen, etc.
