Semi Automatic Multi color Vial screen printing machine
suitable for small factory Y-400 screen printing machine for multi-color cosmetic tubes/bottles/containers
VIDEO LINK: https://www.youtube.com/watch?v=wPt30UITnoc
Machpecisuitable for small factory Y-400 scsuitable for small factory Y-400 screen printing machine for multi-color cosmetic tubes/bottles/containers reen printing machine for multi-color cosmetic tubes/bottles/containers
|
Model No. |
Y-400 |
|
Drive System |
Servo Motor |
|
Control System |
Mitsubish PLC |
|
Maximum Prinit Size |
100*200mm |
|
Maximum Print Height |
50mm |
|
Print Speed |
2000-2200 pcs/hr |
|
Up/Down Front/Back Drive |
Servo Motor |
|
Up/Down Stroke |
150mm |
|
Right/Left Stroke |
400mm |
|
Registration Accuracy Tolerance |
≤0.2mm |
|
Air Requirment |
5-7 bar |
|
Electric Source |
220V 50Hz 1.5KW |
|
Machine Size |
1150*890*1430mm |
|
Drying tunnel dryer |
IR infrared: 6000W |
dard Features:
• Mitsubishi PLC control system, programmable printing process, easy operation;
• Screen frame driven by servo motor moving up and down, with Taiwan double slide guide, fast up and
down moving, precision registration, stable and low noise;
• Panasonic servo motor system, synchronous belt transverse drive, and Taiwan double slide guide ensure
stable and precision printing, squeegee and flood bar speed is adjustable;
• Vacuum suction device ensure accurate print position when the object in transfer process.
• Worktable adjustment design good for different object thickness;
• Auto unloading device, and auto positioning system ensure the precision printing;
• Rotary table use precision splitter for fast and stable printing. Rotary table station has 2, 4, 6, 8 for
choice.

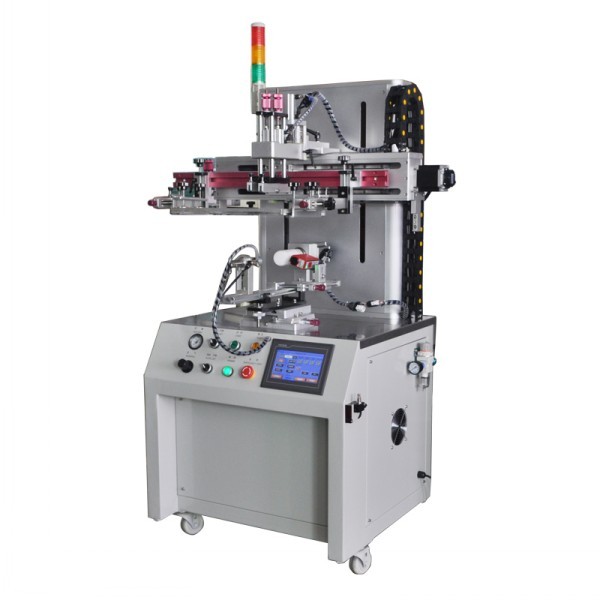

Picture :

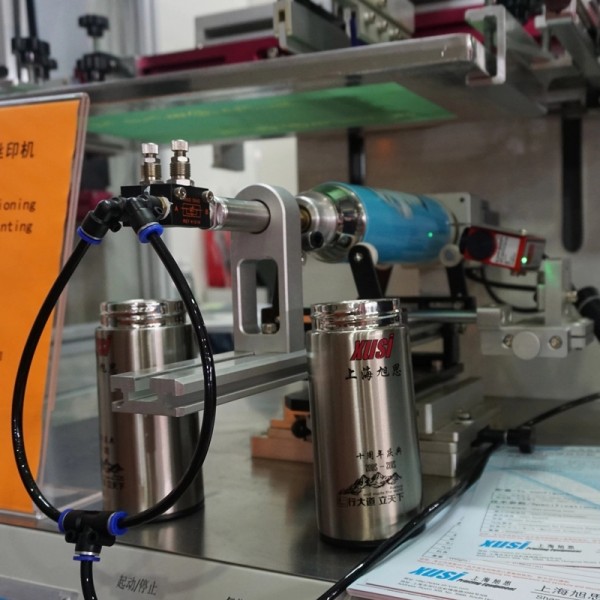

Printing sample:
