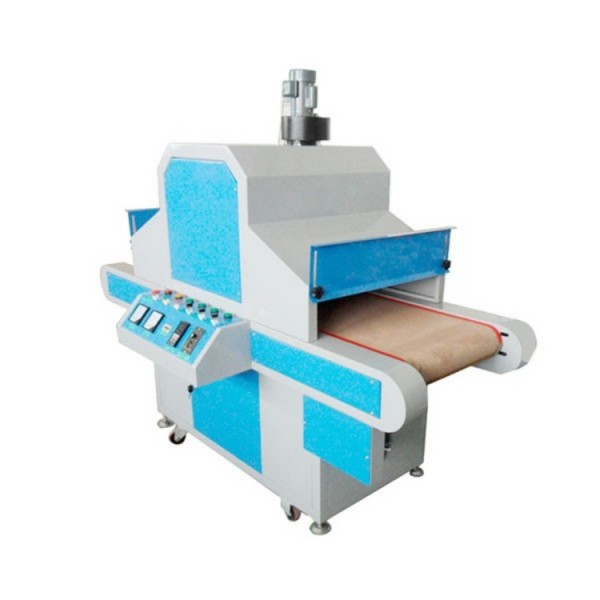

UV light UV curing machine for board  ( HC-500 )



Model	Power/Luminous source V/KW	Conveyor belt Width	Transport speed m/min	Dimension
HC-500	2 x 3000kw	500mm	5~25	2020x940x1610mm









Applicable range



UV drying machine is used for drying screen printing ink by UV ultraviolet (UV) light curing. It can be used in UV light oil, grinding, wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.









Main performance



1. 2 sets of UV light source system configuration, according to the number of open lamp production needs.



2. Import Teflon conveyor belt, Seiko produced, smooth operation noise



3. The belt speed motor and speed stainless speed conveyor speed visual production situation



4. Convergent design, high light-gathering reflective chimney, instant drying speed, when the express.



5. UV light height of chimney can be adjusted



6. UV lamp working current can be shown by the master, UV analogue display system working condition



7. Equipped with exquisite cooling system, prevent the working chamber at high temperature, the effective protection of production work environment.









Configuration:



1. Import UV light, high gather reflective chimney



2. Import Teflon or stainless steel mesh belt



3. Stepless motor import from Taiwan



4. Manda brand cooling fan with high quality
