Product Description



Parameter:



Name	Model No.	Roller dia.(mm)	Wdith entrance(mm)	Voltage(V)	Power	Temp.(℃)	Speed/hour(cm/h)	Size(cm)	Weight(kg)
Roller heat transfer machine	GS-R120	420	1200	110/220/ 380	18kw	1-400	120-180cm/h	380x180x140	900
			1700		21kw		120-180cm/h	380x240x140	1300
			2000		24kw		120-180cm/h	380x270x140	1600
			2200		27kw		120-180cm/h	380x290x140	1700
			2500		30kw		120-180cm/h	380x320x140	1900
		600	1200		30kw		200-300cm/h	380x190x150	1500
			1700		36kw		200-300cm/h	380x240x150	1900
			2000		39kw		200-300cm/h	380x270x150	2200
			2200		42kw		200-300cm/h	380x290x150	2500
			2500		45kw		200-300cm/h	380x320x150	2800

 Oil drum diameter: 20cm,30cm,42cm,60cm,80cm

Printing area: 120cm,150cm,170cm,190cm width or customized size.





Machine Features:

1. This SUS heating hose heats oil directly at the higher heating speed, reaching 200℃ within 45 minutes



2. It is equipped with external oil box which makes it convenient to add heat conduction oil, it has high security performance with the unique advantage of anti-explosion through automatic turn off.



3. Blanket ad belt are separated. Adopt simultaneous shaft adjustment and pressure balancing shaft to make sure the pressure on the blanket is consistent with that on the heating roller, Thus completely solve the problem of cooling the blanket while turning off the machine or while power off, and give more protection to the blanket and extend its using life.



4. Use frequency conversion governor which can adjust the printing speed freely. And the transfer printing speed is more stable.



5. Automatic collecting and releasing cloth system is optionally equipped.



6. The electric components of the product are imported, and it separated structure of the electric box with the body machine makes the using life of the electrical equipment longer, the digital control brings higher accuracy.



7. The hardware is with high-tech configuration. The main wall panel and rollers are all reinforced and manufacture professionally.



8. The releasing-laying system is manufactured with the body machine as a while part, thus to deliver the paper or cloth exactly parallel without deviation. It only converts a small area but it is labor-saving with high overall efficiency.



 This machine is newly developed in 2012, improved from the original model of “down deliver out” to the “Upper deliver in”.



Therefore, it is more convenient to transfer printing on clothing and cuttings with more accurate location. Using the pneumatic pressing or hydraulic press for wool blanket marks the color of the products darker, and brighter, which greatly speed up the transfer printing.

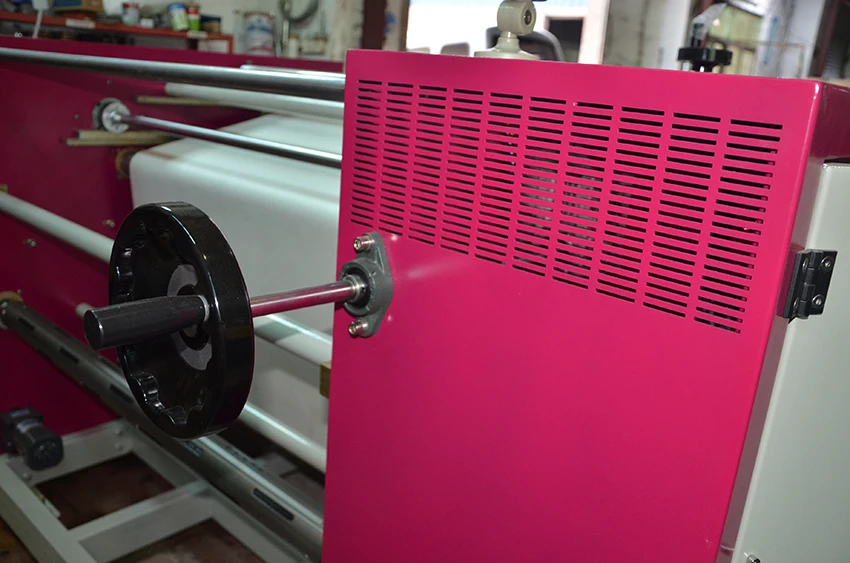

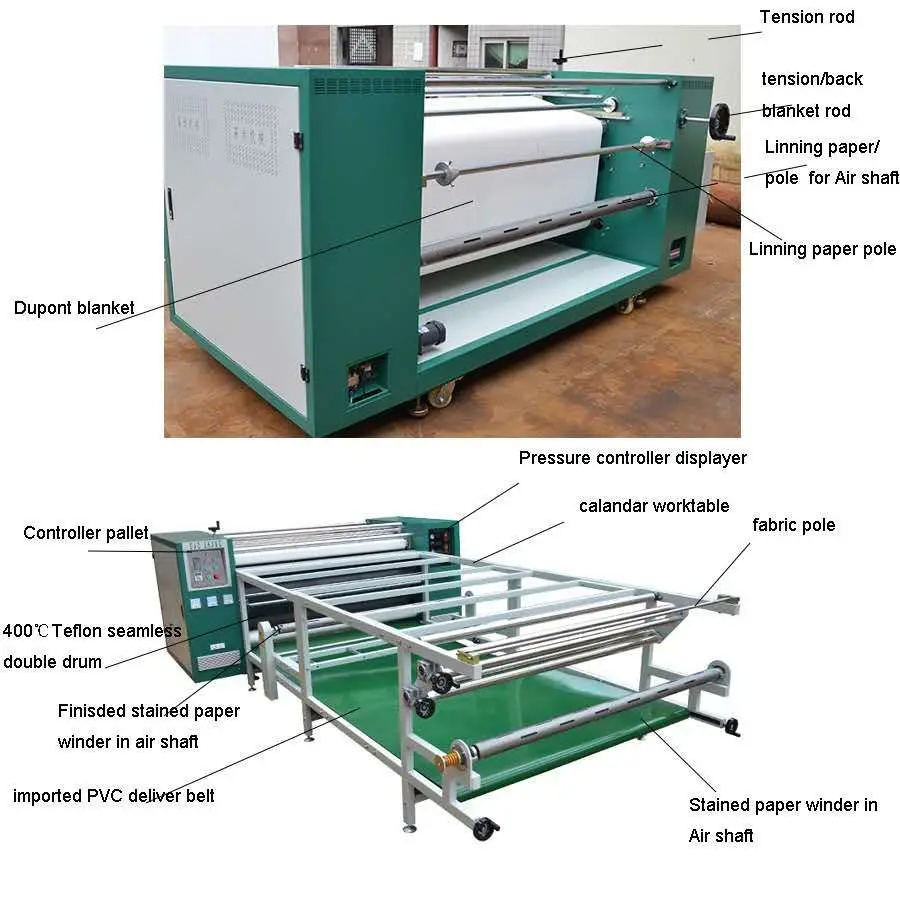

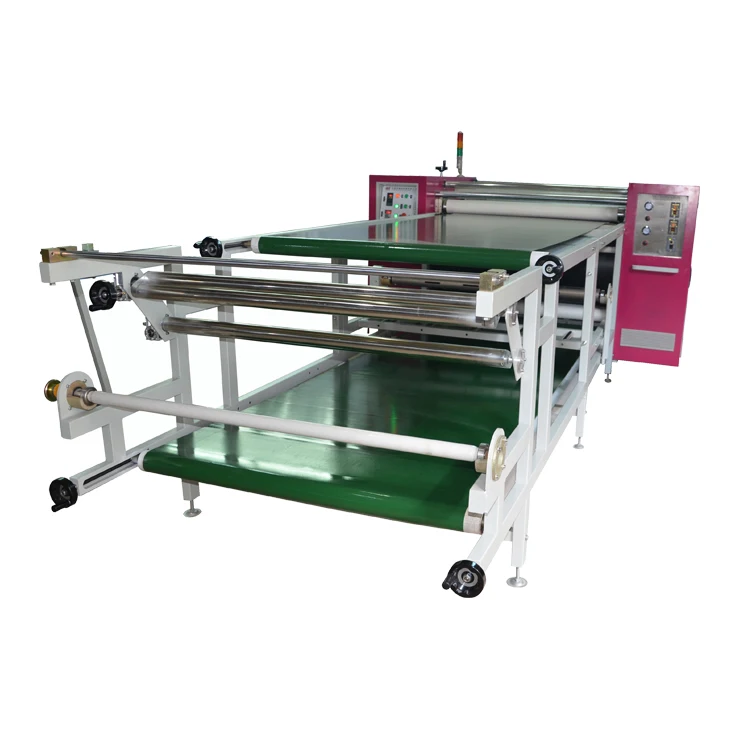

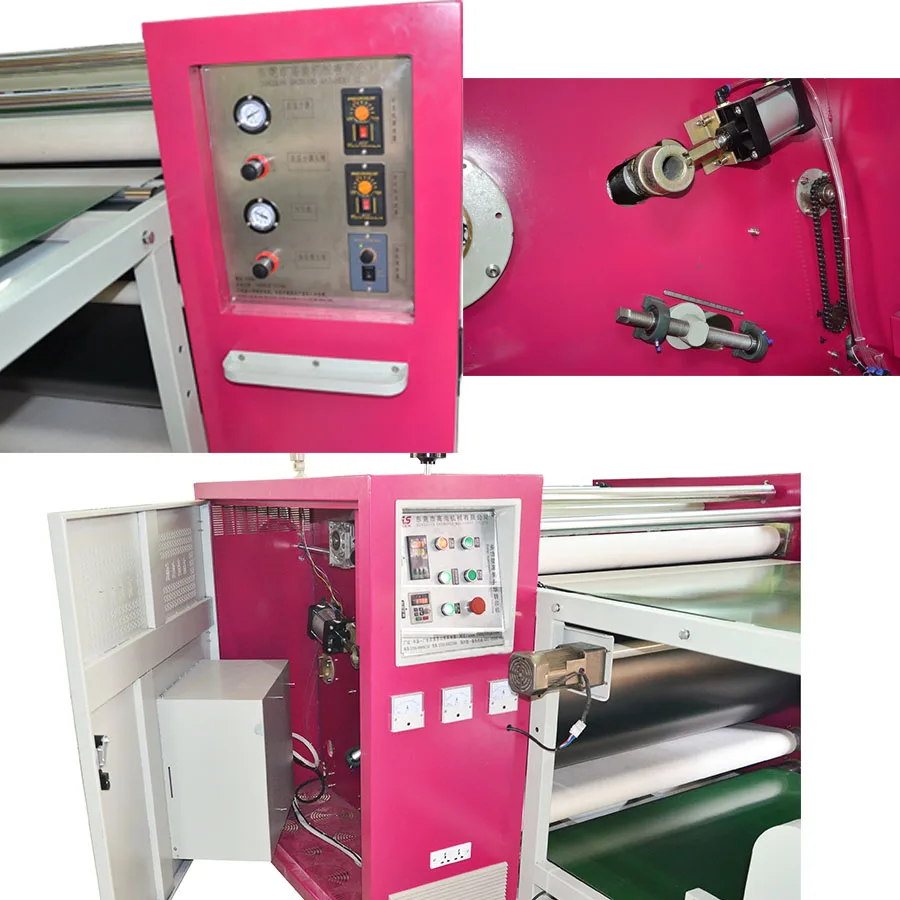

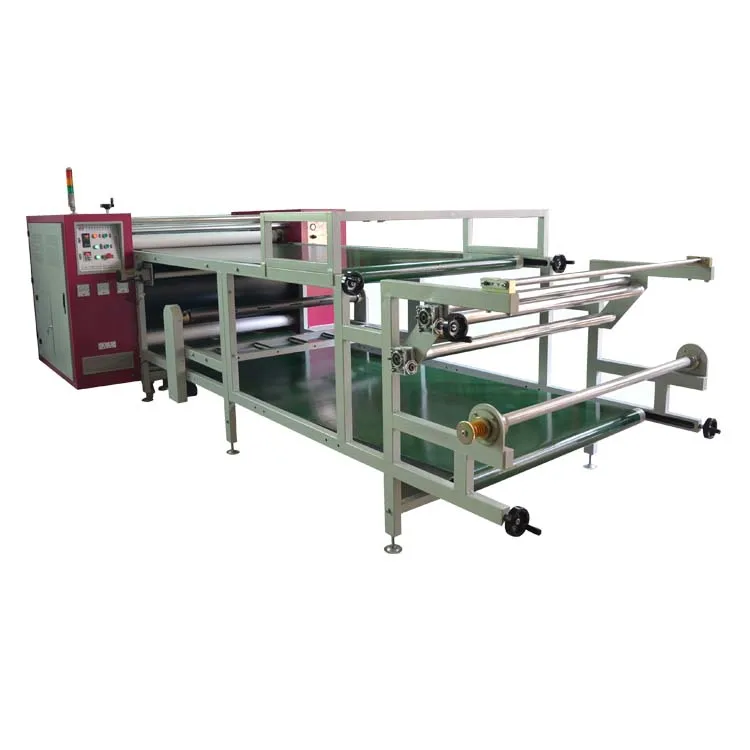

Product Detail:
