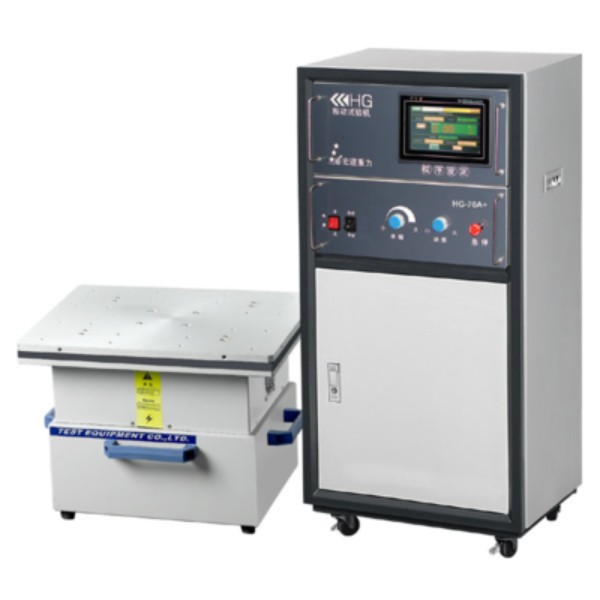

Electromagnetic vibration testing machine
Electromagnetic Vibration Test Bench TestingMachine
Main Features:
TZ-70A type vibration test bench is anelectromagnetic type frequency sweeping vibration table developed to meetmarket demand. Enhanced with the characteristics of low price, small size ,easy operation and cost-effective. Widely used in various industries.
· Strong function
Steplessadjustment of amplitude, adapt to a variety of test requirements in differentindustries.
Withworking time set, easy to use.
Controlparameters are displayed synchronously in real time, without manualintervention.
Steplessadjustment of amplitude, fixed frequency and frequency sweeping operationfunctions to meet various test requirements of different industries.
Importfrequency controller, digital control and display frequency, PID adjustmentfunction.
· Excellent performance
Embedded amplitude prediction program andeasy to adjust .
Four-point synchronous exciting vibrationwith excellent uniformity of vibration.
Frequency control is precise and balanced.
Increase the anti-interference circuit tosolve the interference caused by the strong electromagnetic field to thecontrol circuit.
·Reasonable design
Eco-friendly design, ultra-low noise, thepreferred device for the production line.
Long-term operation does not drift, no needto install anchor screws to protect the floor.
Themagnesium alloy panel completely isolates the magnetic field interference andeffectively prevents magnetization of the tested object.
·Technical specifications
|
Maximum load (kg) : |
60 |
|
Manual frequency modulation range (Hz) |
5-200 |
|
Automatic frequency sweep range (Hz) |
5-200 |
|
No-load displacement amplitude(mm) |
0-5 |
|
Exciting vibration mode |
Electromagnetic |
|
Amplitude Modulation Mode |
Stepless amplitude modulation, Electronic amplitude modulation |
|
Vibration direction |
vertical |
|
Vibration waveform |
Sine wave |
|
Test mode |
FM / automatic sweep (logarithm, linear, magnification, random vibration) |
|
Control System |
3-segment program setting / 30-segment program, frequency and curve time can be set arbitrarily |
|
Time set range |
0.01s～99.99h |
|

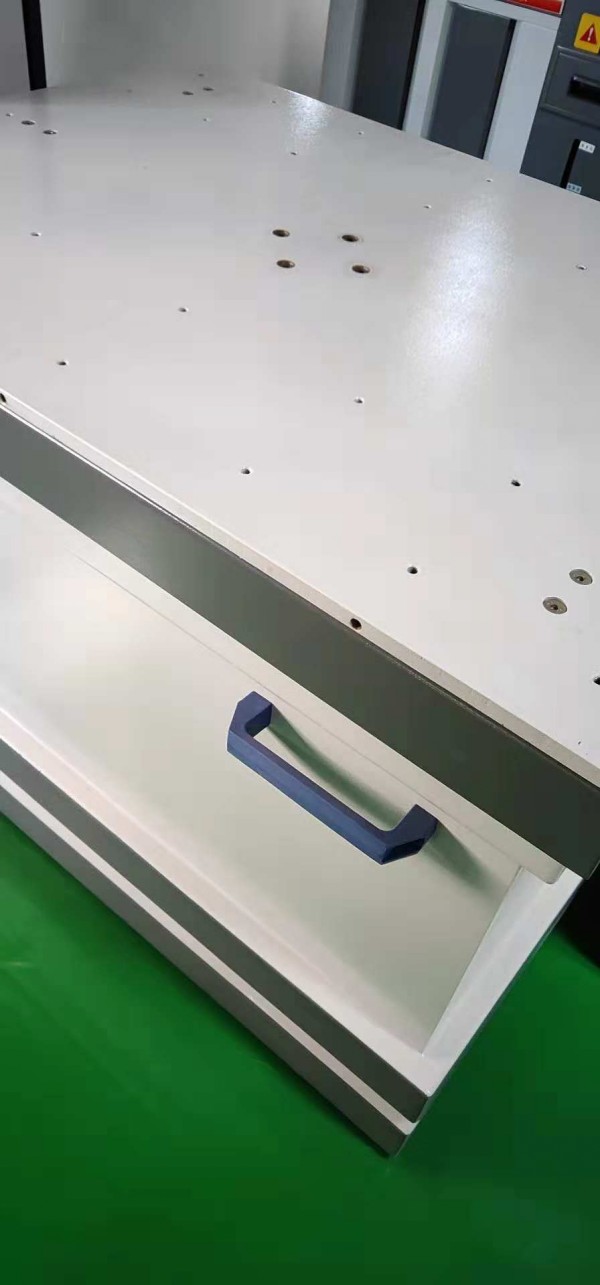

Work surface size(mm) |
550(L)×550(W)×46(H) |
|
Table body dimensions(mm) |
550(L)×550(W)×350(H) / 550×550×650mm |
|
Control box dimensions(mm) |
450(L)×330(W)×750(H) / 500(L)×380(W)×1050(H) |
|
Power supply voltage (V/Hz) |
220/50±5% |
|
Power consumption(KVA) |
2.0 |
|
Cooling method |
Air-cooled |
|
Standard |
GB/T2423.10 |
|
Warm tip:As technology advances, product structure and parameters will be improve Constantly without notice. The sample information is slightly inconsistent with the actual object, take practicality as standard. |
|
