Double Sided Film Laminating Machine
Basic Specification:
|
Model NO. |
SKD-800 |
SKD-1050 |
SKD-1200 |
|
Max. Paper Size（L*W） |
1040*760mm |
1100*1050mm |
1200*1200mm |
|
Min. Paper Size（L*W） |
240*300mm |
340*340mm |
450*450mm |
|
Paper Thickness（g/㎡） |
100~500g/㎡ |
100~500g/㎡ |
100~500g/㎡ |
|
Laminating Speed（m/min） |
0~80m/min |
0~80m/min |
0~80m/min |
|
Voltage（v） |
380v |
380v |
380v |
|
Temperature（℃） |
80~110℃ |
80~110℃ |
80~110℃ |
|
Total Power（kw） |
25kw |
30kw |
35kw |
|
Machine Weight（kg） |
3000kg |
5000kg |
7000kg |
|
Dimension（L*W*H） |
5600*1450*1600mm |
9000*2200*1900mm |
10600*2400*1900mm |

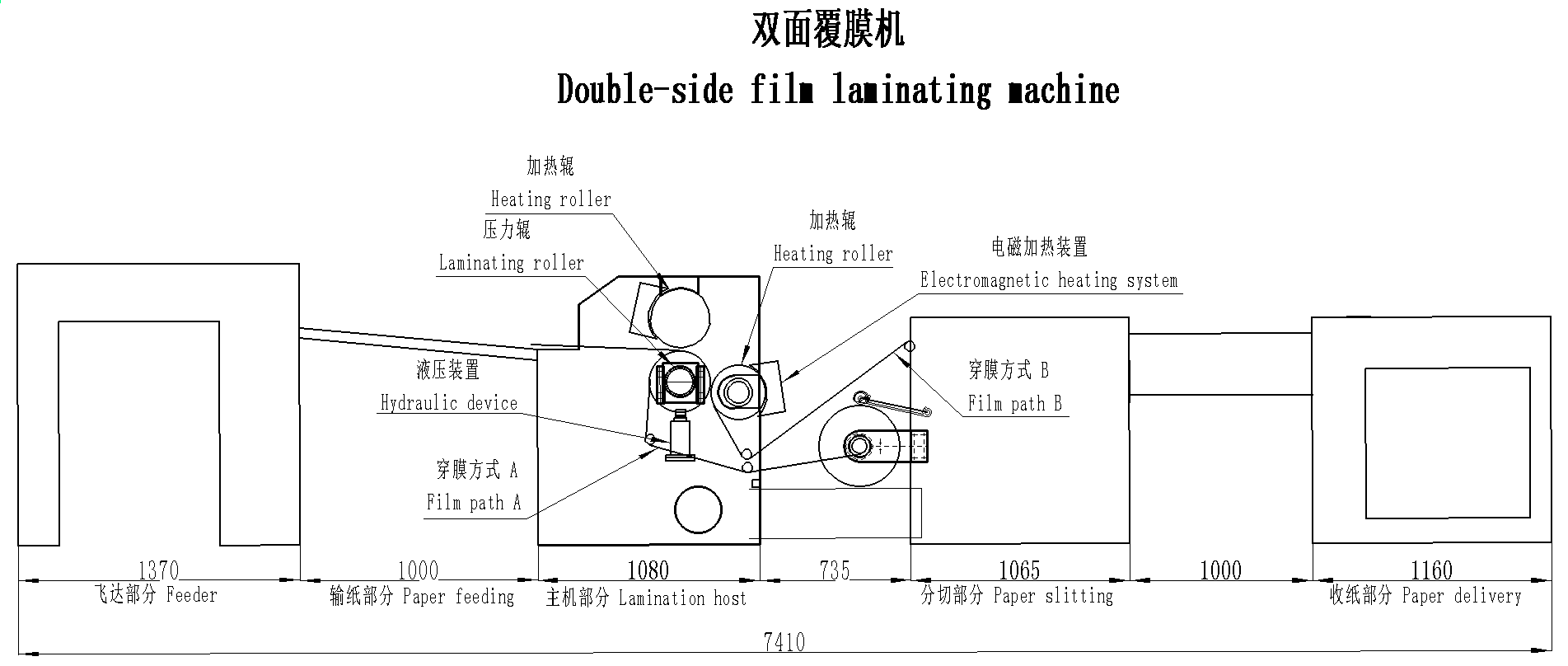

Technical Features:
The unique dual electromagnetic heating system is used without laminating twice onto the
machine in a traditional way. Also makes the start-up temperature rise more quickly and the
laminating temperature is more stable. The front section is equipped with an automatic feeder
system that is accurate, efficient and simple.The paper table is made up of straight plates, which
are stronger and more stable.The main unit is equipped with a side pull gauge device to ensure
that the paper is neatly aligned. The perforating and slitting device makes the film slitting more
stable and reliable, and the tail film is less.The wheel for paper buffering device makes the machine
run at a higher speed and the delivery is smoother. User-friendly automatic delivery device
eliminates cumbersome labor.
