Single Sided Film Lamination Machine



Basic Specification:

Model NO.

SKS-800

SKS-1050

SKS-1200

Max.Paper Sizemm

780*1040mm

1050*1200mm

1200*1460mm

Min.Paper Sizemm

300*300mm

350*350mm

400*400mm

Paper Thickness (g/m2)

100~500g/m2

100~500g/m2

100~500g/m2

Laminating Speed (m/min)

0-65m/min

0-80m/min

0-80m/min

Total Power (KW)

25kw

30kw

35kw

Machine Weight (KG)

3000kg

4600kg

6600kg

Dimension (L*W*H)

5400*2000*1900mm

8350*2400*1900mm

10500*2700*1900mm

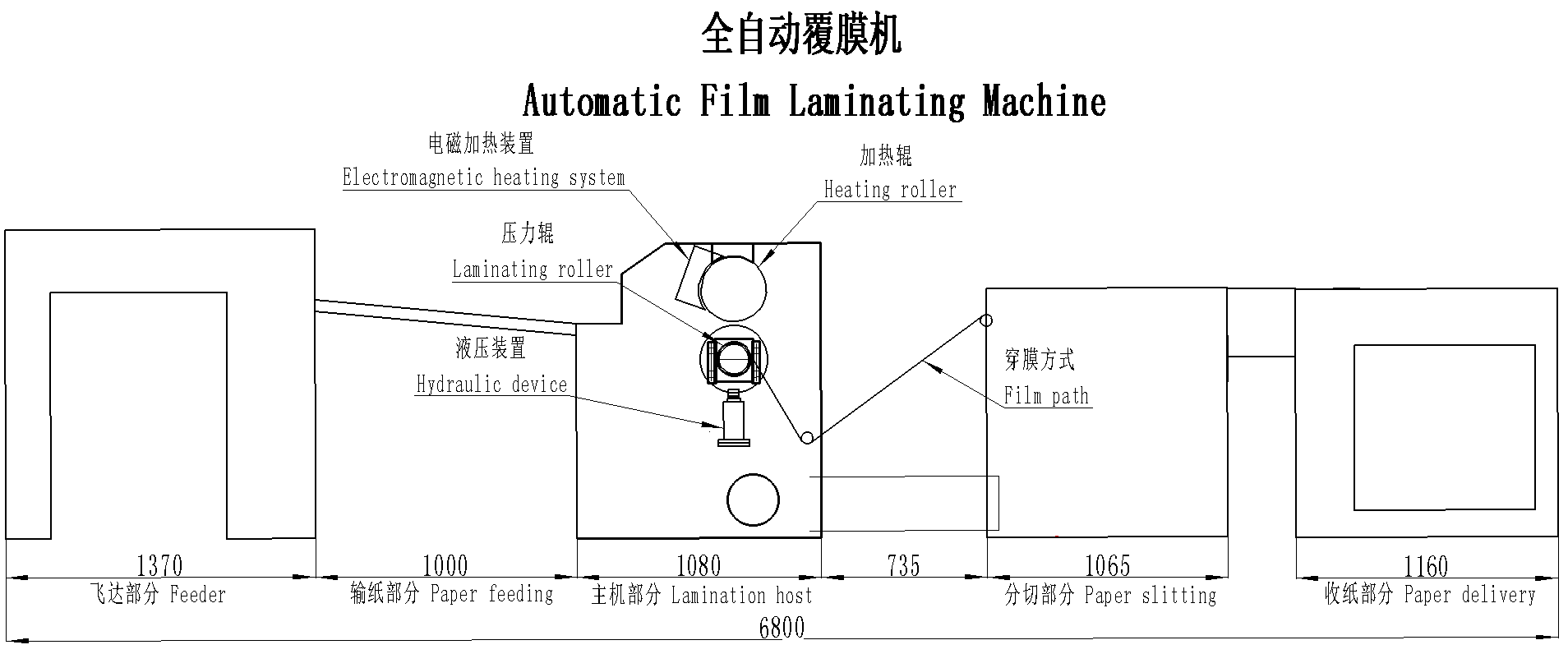

Technical Features:

The electromagnetic heating system makes the start-up temperature rise more quickly and the

laminating temperature is more stable. The front section is equipped with an automatic feeder

system that is accurate, efficient and simple. The paper table is made up of straight plates, which

are stronger and more stable.The main unit is equipped with a side pull gauge device to ensure

that the paper is neatly aligned. The perforating and slitting device makes the film slitting more

stable and reliable, and the tail film is less. The wheel for paper buffering device makes the

machine run at a higher speed and the delivery is smoother. User-friendly automatic delivery

device eliminates cumbersome labor.
