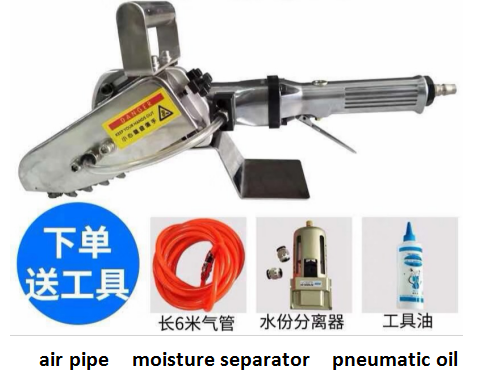

Each set of waste stripper including:

(1) One piece of waste stripper

(2) One piece of moisture separator

(3) One piece of air pipe

Working source: compressed air

Air pressure: 0.6~0.8MPa

Speed: 2500RPM

Paper thickness: 200~500gsm

Net weight: 3.6 KG

Portable pneumatic waste stripping machine

Chain claw raw material: SK9, high-frequency quenching HRC60 degrees, chain claws are thickened, more durable

Operating pressure: 6-8KG

Air consumption: 12cfm

Inlet pressure: 8 * 12MM

Free rotation speed: 2500

Consists of: pneumatic motor, hand-held pneumatic switch and high-hardness chain claw rotating motion organization.

Principle : through the compressed air from the joint at the tail end of the handle through the manual control valve and sliding valve to start the reduction motor, make the pneumatic motor output a stable torque, and then move the high-hardness chain claws for rapid transformation , and then make the gripper move.

Use of pneumatic waste cleaning machine: after punching and blanking according to the opening pattern of the carton, the remaining peripheral waste is removed by the fast-moving grasping claws, which can replace the hammers and craftsmanship widely used by domestic carton factories, inefficient conditions, but now useful to improve the quality of the carton.

Applicable scale and precautions:

1. Firstly, stack the paper stacks that need to be scrapped. The four sides should be flush. The four sides must have knife edges. The gap between the knife edges and the knife edges should be easy to pile up. When scrapping, it is necessary to ≥5mm, break the breakpoint.

2. Applicable paper scale: 200~500 gsm cardboard, single / double corrugated paper, double corrugated mounting paper.

Operation tips:

1. The user shall equip with an air compressor by himself. In order to make the machine work reliably for a long time, it is necessary for the user to input the pressure of the compressed air of the machine. It is necessary to adhere to 0.63Mpa and pass through boring treatment. (Two pieces) connected to the output of the air compressor.

2. Regularly remove paper dust or dust stuck in the gaps of the machine to maintain the normal operation of the machine.

Operation instructions:

1. Pneumatic tools are for protection, not repair.

2. Pneumatic waste cleaning machine is different from other pneumatic tools. After a one-week running-in period, and insisting on the unhindered sliding of the chain and the sprocket at any time, add a few drops of gear oil to the chain every half of the working day to reduce conflicts before extending its operating time.

3. First, determine that the machine is connected to the air source, ensure that the air pressure is 6-8 kgf, and the air pipe needs to be 8 * 12M / M for normal operation.

4. Before the air pressure is turned on, the chain can be rolled freely with your hands, otherwise it cannot be used. After adjusting the direction of the paper scraper, fix the locking screws so that it cannot swing.

5. Before going to or from work every day, be sure to drip three to four drops of special oil for pneumatic tools from the air inlet, and try running in the air for 3~5 seconds.
