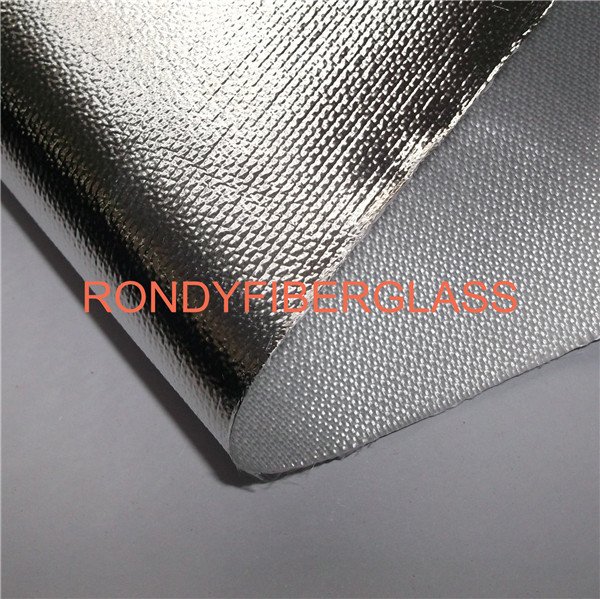

aluminum foil coated fiberglass fabric
Aluminum foil laminated fiberglass fabrics are made of fiberglass fabrics laminated an aluminum foil or film on one side. It can resistant radiant heat, and has a smooth surface, high strength, good luminous reflectance, sealing insulation, gas-proof and water proof. The thickness of aluminum foils is from 7micro to 25 micro.
Main application:
1. Electric insulation: can made into insulated fabric, sleeves, and used in places which need high electric insulation grade.
2. Non-metallic compensator: used as pipeline flexible coupling, non-metallic compensator. Mainly used in power station, petroleum, chemical engineering, cement, iron and steel and so on.
3. Anti-corrosion sector: used as external and internal corrosion proofing layer of pipeline and preservation jar, It is an ideal corrosion-proofing material.
4. Fire-proofing sector: can be used in automobile making, shipbuilding industry as fire-proof fabric.
5.Others: it can also be used as construction sealing material, high temperature corrosion-proofing belt, packing material, new energy etc.
Weight:450g/m2,300g/m2, etc
Width:1000mm~2000mm
Length:50m per roll
Package：carton or pallet
|
Fiberglass fabrics finishing style |
Service Temperature |
Feature |
Fiberglass fabric Applications |
|
Aluminum coated with fiberglass fabric |
550℃ |
Heat reflection, waterproof,abrasion proof |
Heat protection cushions,motor vehicle industry |
|
Dyeing with fiberglass fabric |
550℃ |
Heat reflection,distinguish work area |
Heat protection, Welding blanket |
|
Heat treatment fiberglass fabric |
550℃ |
Decrease pulverous mote, good osmosis |
Welding blanket, general purpose insulation |
|
Silicone coated with fiberglass fabric |
550℃ |
Mechanical load , good chemical resistance,oil resistance, corrosion resistance |
Welding blanket,foundry splash protetion,conveyor belt and expansion joints |
|
Vermiculite coated fiberglass fabric |
750℃ |
Abrasion resistant and fireproof |
Welding blanket, general purpose insulation |
|
PVC coated with fiberglass fabric |
550℃ |
Waterproof,easy to cuts |
Shed fabric,with-booting tube, fire blanket used on waterproofing , fireproof,cold-proofing |
|
Acrylic coated with fiberglass fabric |
550℃ |
Abrasion resistane, easy to cuts,allergen resistant,anti-adhesive |
Welding blanket, expansion joints |
|
Neoprene coated with fiberglass fabric |
550℃ |
Abrasion resistane,allergen resistant |
Welding protection |
