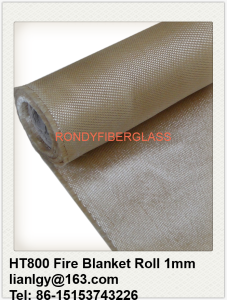

HT800 3784 Fiberglass cloth |fire blanket| 1mm


Fiberglass cloth HT800 3784

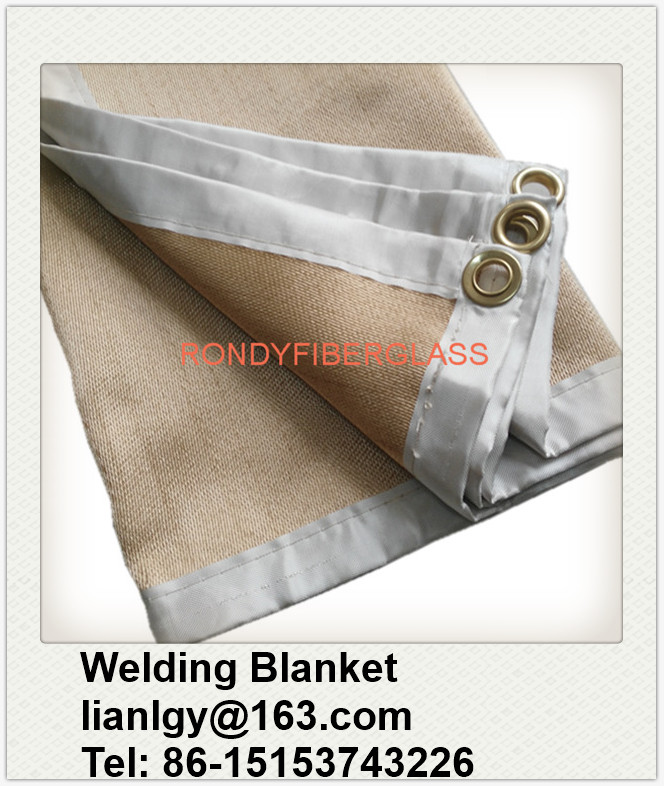

HT800 fiberglass cloth is also clalled fiberglass insulation cloth, fiberglass welding blanket, fiberglas blanket cloth mainly uses the E-glass/C glass fiber yarns, weaved by satin. Fiberglass cloth HT800 3784 850g/m2 is by far the most commonly used fiberglass insulation cloth in the market. Its usage spill over from the conventional ship and marine repair to oil and gas, petrochemical and metal construction industries.


It's properties of good electrical insulation, fireproofing, waterproofing, high strength, etc, it widely used in epoxy copper plate and electric appliance insulation products, printed wiring board, fire protection insulation board, and aviation and so on.



Technical Data

Weave
Satin
Yarn (tex)
Warp
EC9 33 2×4
ECG 150 2/4
Weft
EC9 33 2×4
ECG 150 2/4
Width (cm)
101.6±2cm
40±0.75inch
121.9±2cm
50±0.75inch
152.4±2.54cm
60±1 inch
Thickness
0.80±0.04mm
0.025±0.0017inch
Weight
840±22g/m2
34±0.6oz/yd²
Thread count
Warp
18±1.8cm
45.7±4.5/inch
Weft
13±1.3cm
33±3.3/inch
Tensile
Strength
min
Warp
8000N/5cm
666 ibs/inch
Weft
6000N/5cm
500 ibs/inch
L.O.I%
1
Service Temperature
550°C

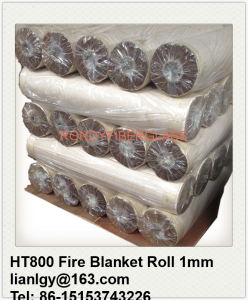

Package :  woven bag or one roll per carton

Width : 100 cm . roll length : 25m or 50m
