High temperature silica fabric cloth
High temperature silica fabric cloth

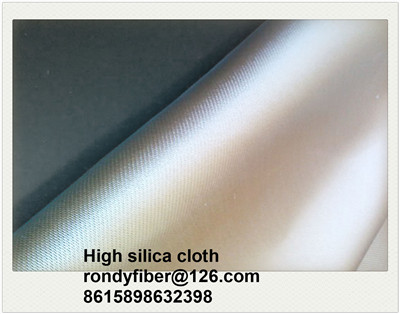

Woven Silica Fabric is constructed from a 96% pure SiO2 silica fiber, a health-conscious alternative to asbestos and ceramic textiles. Woven Silica Fabric is widely used for applications that require high heat resistance, as well as abrasion and/or chemical resistance. It is also used for the safety of personnel and equipment, and as thermal barriers to reduce energy costs.
Available in thickness of 0.030″ (.76 mm) and 0.050″ (1.27 mm).
FEATURES
• Comprised of high strength, high purity 96% amorphous silica fibers
• Designed to withstand continuous temperatures of 1800°F / 982°C
• High Dielectric Strength
• Low Thermal Conductivity
• Excellent for use where E-glass fabrics would typicall fail
• Resistant to most corrosive agents and chemical reagents
APPLICATIONS
• Welding blanket and curtains
• Furnace curtains
• Thermo couple insulation wrap
• Flame resistant barriers
• Thermal barrier insulation
Product Parameter:
| Style | Weave | Thickness | Breaking Strength* | Weight | Width | |
| mm | Warp | Weft | g/m2 | mm | ||
| SILICA84-86 | 8H Satin | 0.76 | 900 | 650 | 680 | 86 |
Technical Data:
| Weight | Thickness | Density | Width |
LOI |
Moisture |
| g/m2 | mm | Ends/in | mm | % | % |
| ISO 3374 | ISO 4603 | ISO 4602 | ISO5025 | ISO 1887 | ISO 3344 |
| +/-8% | +/-10% | +/-2 | +/-3 | 3.0+/-0.3 | <0.25 |
Specification:
| Style | Weave | Thickness | Breaking Strength* | Weight | Width | |
| mm | Warp | Weft | g/m2 | mm | ||
| SILICA10-82 | Plain | 0.1 | 70 | 50 | 87 | 82 |
| SILICA26-82 | Plain | 0.26 | 290 | 190 | 240 | 82 |
| SILICA84-86 | 8H Satin | 0.76 | 900 | 650 | 680 | 86 |
| SILICA88-86 | 12H Satin | 1.26 | 1200 | 800 | 1150 | 86 |
