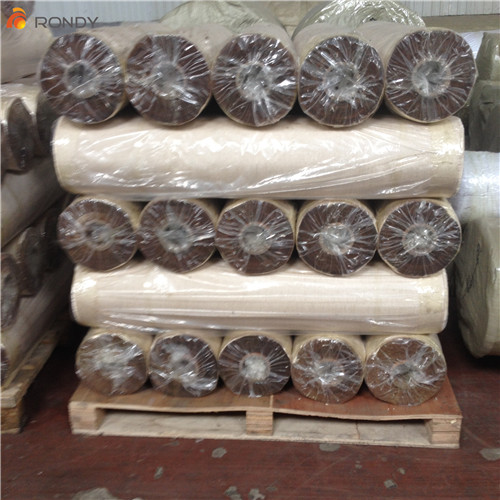

heavt duty welding blanket HT800 fiberglass cloth

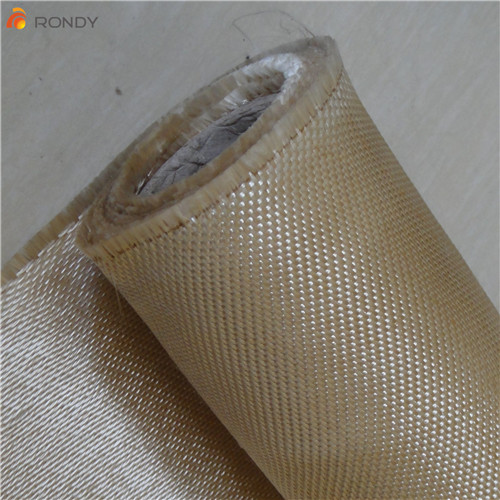

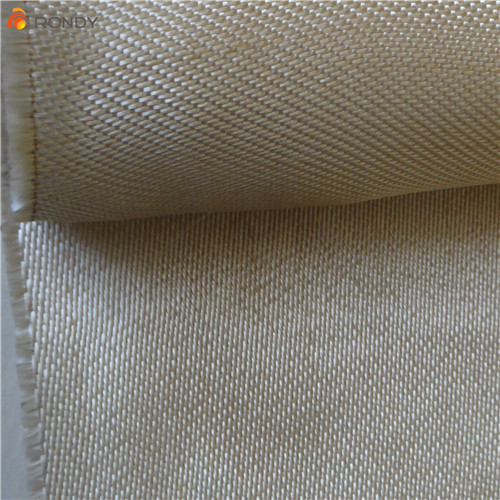

HT800 satin weave Fiberglass cloth, It is used as Welding blanket and insulation lining to proptect sensitive machinery, HT800 satin weave fiberglass cloth is effective against moderate to heavy welding sparks. Its light and heat treated satin weave pattern results in thicker, heavier and stronger fabric far more resistance to heat impact from welding sparks as compared to other thinner, texturised cloths. High tensile satin weave HT800 also has a non hairy texture preventing irritation to be exposed skin common in other lower quality fabric and asbestos cloths.
HT800 fiberglass cloth is used extensively in the ship fabrication, ship repairs. Oil and gas, pentrochemical and metal construction industries where heat insulation, insulation lining and extensive welding take place
|
Technical Data Sheet HT800 Fiberglass cloth |
||||
|
1 |
CODE |
RD3784HT |
||
|
2 |
WEAVE |
SATIN |
||
|
3 |
YARN(tex) |
WARP WEFT |
33tex x 8 33tex x 10 |
|
|
4 |
WIDTH |
1m-2m |
||
|
5 |
THREAD COUNT |
WARP WEFT |
18/cm 12/cm |
|
|
6 |
THICKNESS |
1.0mm （+0.03mm) |
||
|
7 |
BASE FABRIC WEIGHT
|
840g/m2 |
||
|
8 |
SERVICE TEMPERATURE |
550℃ |
||
|
|
COLOUR |
HEAT TREATED ,GOLDEN |
||
