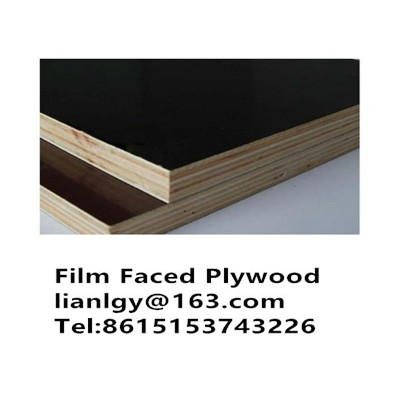

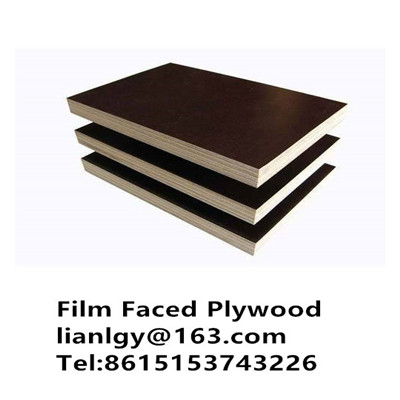

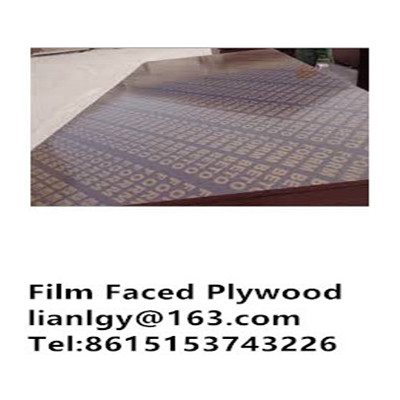

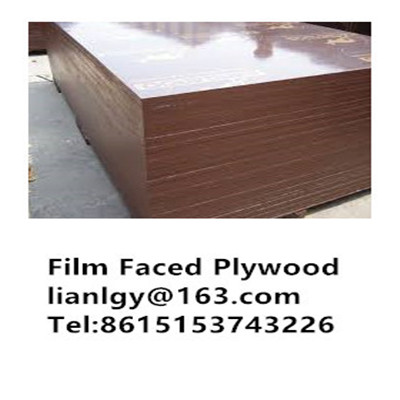

Film Faced Plywood for Concrete Shuttering System
Film faced plywood is a concrete shuttering plywood, with a smooth, double-sided phenolic film overlay and sealed edges. It is also a multipurpose and maintenance free cladding panel for the transport industry and agriculture.
Base plywood of film faced plywood: Poplar/birch/combi/hardwood core
Glue: W. B. P. Glue (weather/ boil proof)
Film color of Film Faced Plywood: Dark brown, black film. Other colors like yellow, green, grey, light brown can be special ordered.
Thickness of Film Faced Plywood:
Mm 4 6.5 9 12 15 18 21 24 27 30
Size of Film Faced Plywood:
1200 1200/ 1800/ 2400/ 2650/ 2700/ 3000/ 3660mm
1200 1220/ 1525/ 2440/ 3050/ 3660mm
1250 1250/ 2500mm
1500 1500/ 1800/ 2400/ 2700/ 3000/ 3600mm
1525 1525/ 2440/ 3050/ 3660mm
1875 1525/ 2440/ 3050/ 3660/ 3700mm
Base plywood of film faced plywood: Poplar/birch/combi/hardwood core
Glue: W. B. P. Glue (weather/ boil proof)
Film color of Film Faced Plywood: Dark brown, black film. Other colors like yellow, green, grey, light brown can be special ordered.
Thickness of Film Faced Plywood:
Mm 4 6.5 9 12 15 18 21 24 27 30
Size of Film Faced Plywood:
1200 1200/ 1800/ 2400/ 2650/ 2700/ 3000/ 3660mm
1200 1220/ 1525/ 2440/ 3050/ 3660mm
1250 1250/ 2500mm
1500 1500/ 1800/ 2400/ 2700/ 3000/ 3600mm
1525 1525/ 2440/ 3050/ 3660mm
1875 1525/ 2440/ 3050/ 3660/ 3700mm
Other sizes available by order. Maximum standard thickness is 40mm.
The first measurement indicated the orientation of the surface veneer grain. Plywood can also be special ordered with a longitudinal grade orientation.
Application:
Smooth concrete form, cassette systems, transport equipment containers, trailer side boards, horse trailers, sliding doors.
