water driven automatic chemical dosing pump

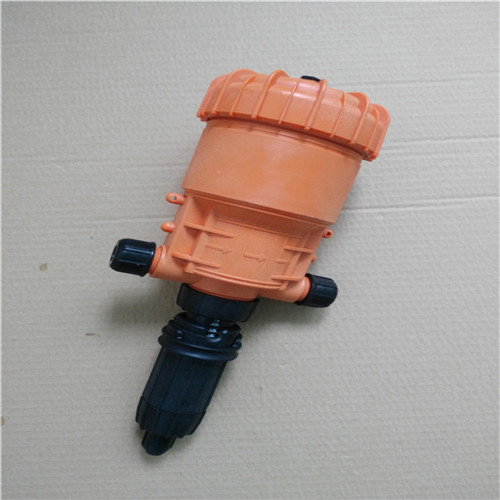

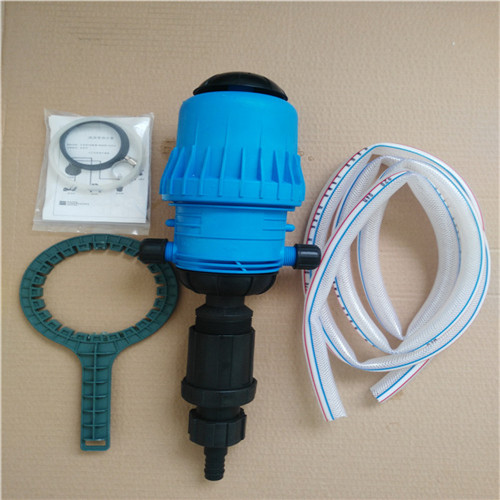

Water Powered Automatic Proportional Dosing Pumps
Working principle:
The proportional pump takes the flowing pressure water as power, having small water pressure loss, without any other power facilities. It uses water power of the proportional pump as engine which drives the piston and the connecting rod inside the proportional pump, sucks up the liquid additive directly and makes it dissolve in the water flow. This device moves up and down in a cylinder. When pressing out the water, it uniformly sucks the additives loaded at the bottom of the container into the water flow through a tube. Repeat the up-and-down motion until the effect is achieved that the additive is added to the flowing water evenly and constantly.
Specification
|
Code |
Dosage Rate% |
Flow Rate Range |
Press Range |
Dosage Rate |
Injection Rate |
|
DP2504 |
0.4-4% |
25~2500 L/h |
0.2~6 bar |
1:250~1:25 |
0.1~100L/h |
|
DP2502 |
0.2-2% |
25~2500 L/h |
0.2~6 bar |
1:500~1:50 |
0.05~50L/h |
|
DPY2502 |
0.2-2% |
25~2500 L/h |
0.2~6 bar |
1:500~1:50 |
0.05~25L/h |
|
DPY2501 |
0.2-1% |
25~2500 L/h |
0.2~6 bar |
1:500~1:100 |
0.25~125L/h |
|
DPY2505 |
1-5% |
25~2500 L/h |
0.2~6 bar |
1:100~1:20 |
0.25~250L/h |
|
DP2510 |
1-10% |
25~2500 L/h |
0.2~6 bar |
1:100~1:10 |
0.25~250L/h |
|
DPY2520 |
2-10% |
25~2500 L/h |
0.2~6 bar |
1:50~1:10 |
0.5~500L/h |
Application:
1, Horticulture industry: fertilization, storage and pest control for flowers, fruits and vegetables, etc.
2, Animal husbandry: the fixed-ratio health dosing for livestock and poultry, such as chickens, ducks, oxen and pigs.
3,Industrial use: water treatment, chemical engineering, metal processing, and fire control, etc.
4,Constant proportion dilution of special solvents, such as smell removal solvent, cooling solvent and lubricating solvent.
5,Car washing industry, printing industry, hospitals, wine industry and other industries.
Feature of dosing pump:
1.No external power; can achieve precise filling, auto exhaust, and adjustment at work filling ratio, easy to install!
2. Manufacturing of high precision, strict inspection, each product has a unique number, quality and reliable!
3. With a low environmental requirements, respirable suspended particulates containing liquid fertilizer, liquid!
4. Low proportion of filling a unique product! Unique multi-tip filling way!
5. Product is modular in design, selection and expansion of convenience, and according to the nature of the medium inhaled material selection.
