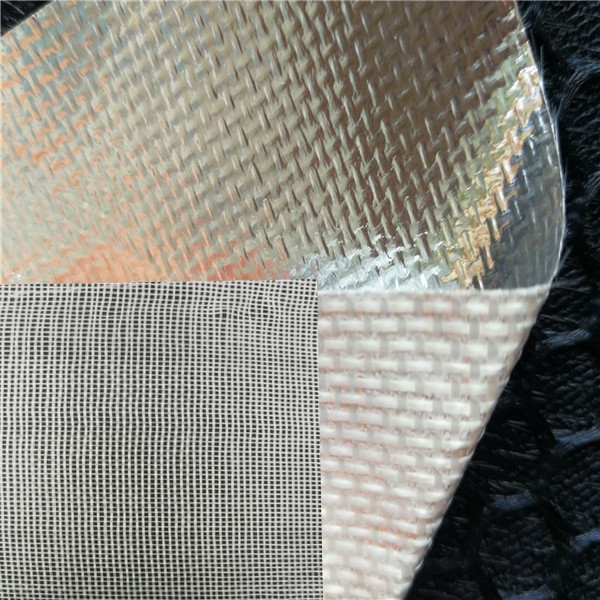

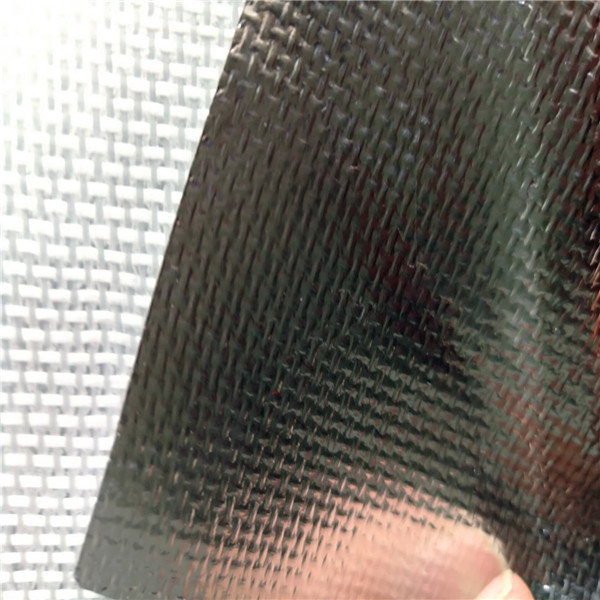

20X20 fiberglass net for aluminum foil laminated
Fiberglass mesh cloth is on the basis of fiberglass woven fabric,then coatedby acrylic acid copolymer liquid. Therefore, It has good alkaline-resistance, high strength, excellent alkali and acid resistance,
good cohesion, excellent in coating etc. can be widely used in building internal and external wall insulation, waterproof, crack resistance and so on.
Application:
1. Wall reinforcement materials (such as fiberglass wall mesh , GRC wallboard,EPS in and outer wall insulation board, gypsum board,etc)
2. Strengthening cement products ( Roman columns,flue)
3. Granite,mosaic special mesh, marble back mesh
4. Waterproof roll cloth and asphalt roof waterproof
5. Reinforced the skeleton materials of plastic and rubber products
6. Fire board
7. Grinding wheel base fabric
8. Caulking belts for construction
Product Code
Yarn Tex (Tex)
Density (Counts/25mm)
Treated Unit Wt
Tensile Strength(N/5cm×20cm)
Warp
Weft
Warp
Weft
G/m2
Warp
Weft
RD45-8×8
30×2
45
8
8
45
≧420
≧420
RD60-10×20
30×1
67
10
20
60
≧450
≧450
RD80-5×5
67×2
200
5
5
80
≧700
≧850
RD80-20x20
38x1
67
20
20
80
≧450
≧450
RD110-10×10
250×2
400
2.5
2.5
110
≧1250
≧1250
RD125-5×5
134×2
250
5
5
125
≧750
≧1000
RD135-5×5
134×2
300
5
5
135
≧1300
≧1400
RD145-5×5
134×2
350
5
5
145
≧1250
≧1700
RD160-4×4
134×2
300
6
6
160
≧1550
≧1600
RD165-4×5
134×2
350
6
5
165
≧1300
≧1300
RD300-4×5
200×2
700
6
5
300
≧2000
≧3000
