Shandong Rondy Corporation is the professional manufacturer of high temperature insulation fabrics in China since 2009 year.  These speciality fabric provide temperature protection from 100℃ -1000℃.The main product including fiberglass cloth,texturized fiberglass cloth,silicone coated fiberglass cloth,PU coated fiberglass cloth,acrylic coated fiberglass cloth,vermiculite coated fiberglass cloth,aluminum foil laminated fiberglass cloth,silica cloth,PTFE coated fiberglass cloth,aramid fabric ,etc.

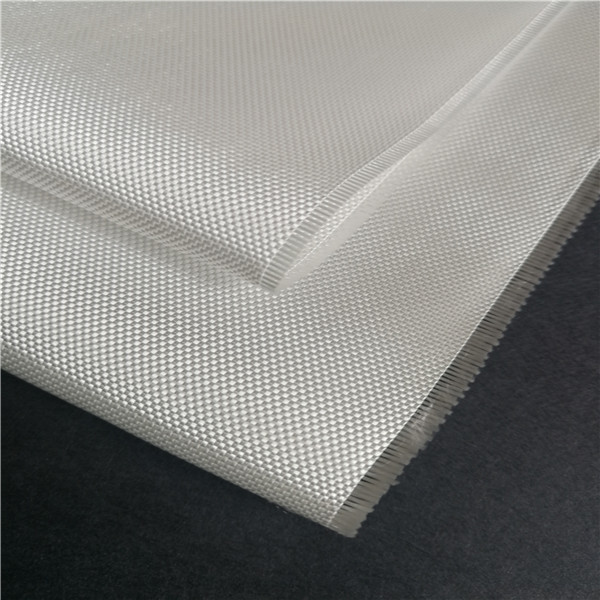

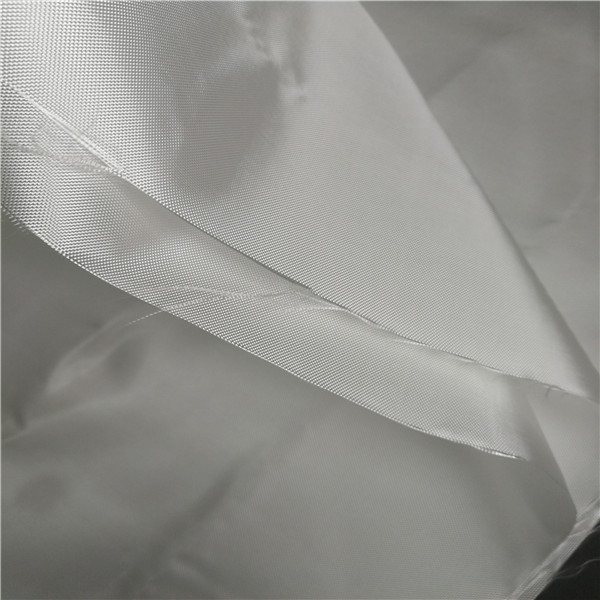

7628 Fiberglass Fabric Cloth

7628 Fiberglass cloth is made of electronic grade fiberglass yarn interlaced with weft and warp on air-jet loom according to plain weave. After predesizing and thermal desizing  is two time, then surface treament of electronic fiberglass cloth to meet the electrical insulation, physical and chemical properties and processability of copper clad laminate . 7628 fiberglass cloth are  the necessary basic materials for electronic industry such as computers and communication equipments.

Product characteristics:

     1.    Even fabric thickness.

     2.    Excellent wet out with resin.

     3.    Excellent electrical insulating property.

    4.    Very few appearance defects.

    5.    Excellent process performance.



Technical Data Sheet Fiberglass Fabric 7628
1	Code			7628
2	Weave			Plain
3	Yarn  (tex)		Warp	43.5±2
			Weft	33.0±2
4	Width			1260+10/-0
5	Yarn		Warp	G75
			Weft	G75
6	Length(meter/roll)			≧2000
7	Thickness(mm)			0.18±0.02
8	Tensile Strength (N/25mm)	Warp		≧400
9		Weft		≧300

Packing:

width :1270mm

Roll length: 2000 max

inner packing: plastic film

Outer packing: carton, iron stand or pallet

Product Code	Weave Structure	Density  counts/cm		Weight (±5%)		Thickness(±10%)		Color
		Warp	Weft	g/m2	Oz/yd2	mm	inch
RD7628	Plain	18	12	200	5.9	0.20	0.008	White
RD280	Plain	12	9	280	8.3	0.30	0.012	White
RD310	Plain	12	10	310	9.1	0.32	0.013	White
RD3732	Twill	18	10	430	12.7	0.43	0.017	White/yellow
RD600	Plain pane	15	14	600	17.7	0.60	0.023	White/yellow
RD3784	Satin	18	12	840	24.8	0.90	0.035	White/yellow
RD3788	Satin	18	12	1750	50.1	1.65	0.067	White/yellow

The product can be production accoring to customers' requirement.

RFQ:

Q: Are you trading company or manufactuer?

A: We are factory with more than 10 years production experience.



Q: Can you send me a sample? Is it free?

A: Yes, We could offer the sample for free charge but do not pay the cost of freight.



Q:What is MOQ?

A: 10000 square meter





Q: How long is your delivery time:

A:Generally it is 15-20 days,it is according to quantity .



Q:Do you accept OEM order ?

A: Yes.



Q: What is your term of payment?



A: TT,LC
