High temperature resistance silicone coated fiberglass fabric welding blanket
Shandong Rondy Corporation is the professional manufacturer of high temperature insulation fabrics in China since 2009 year. These speciality fabric provide temperature protection from 100℃ -1000℃.The main product including fiberglass cloth,texturized fiberglass cloth,silicone coated fiberglass cloth,PU coated fiberglass cloth,acrylic coated fiberglass cloth,vermiculite coated fiberglass cloth,aluminum foil laminated fiberglass cloth,silica cloth,PTFE coated fiberglass cloth,aramid fabric ,etc.
Silicone coated/impregnated Fiberglass Cloth
Silicone coated fiberglass fabric is constructed from a fiberglass base cloth and impregnated or coated one side or both sides with a specially compounded silicone rubber. Due to silicone rubber physiological inert, not only increase the strength, thermal insulation, fireproof , insulating properties, but also has the ozone resistance, oxygen aging, light aging, climate aging , oil resistance and other properties.
Properties :
1.Used in temperature from -94F (-70C) – 572F(300C)
2.Ozone, oxide, light and weathering aging resistance, excellent weather ability used in outdoors and ages may be reached to 10years.
3.High insulation : dielectric constant from 3 to 3.2/breakdown voltage from 20 to 50 KV/mm
4.Physical and chemical properties .
Main application:
Fabric expansion joints
Mechanism and generating equipment
Pipeline ductile conjunction and non-metal compensating facility
High temperature protection and electric insulation.
Product Specification
Code
Width (mm)
Thickness (mm)
Color
Unit Weight (g/m2)
RD7628ST
1270
0.20
red/grey
320
RD3732SO
1000/1524/2000
0.43
red/grey
510
RD3732ST
1000/1524/2000
0.45
red/grey
570
RD3784ST1
1000/1524/2000
0.80
red/grey/black
1040
RD3784ST2
1000/1524/2000
0.90
red/grey/black
1140
RD666ST1
1000/1524
0.70
grey/black
840
RD666ST2
1000/1524
0.70
grey/black
910
Above products are our routine types.Products also can be producted as per customers' requirement.

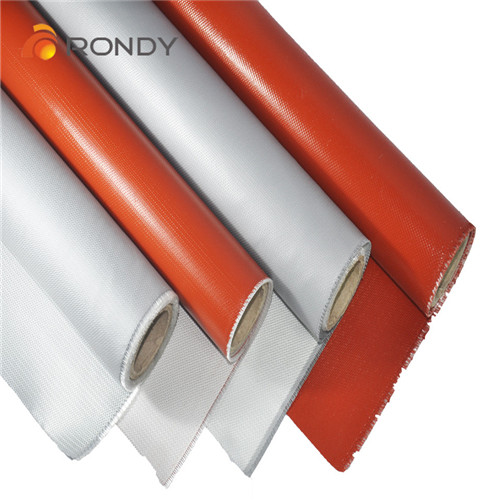

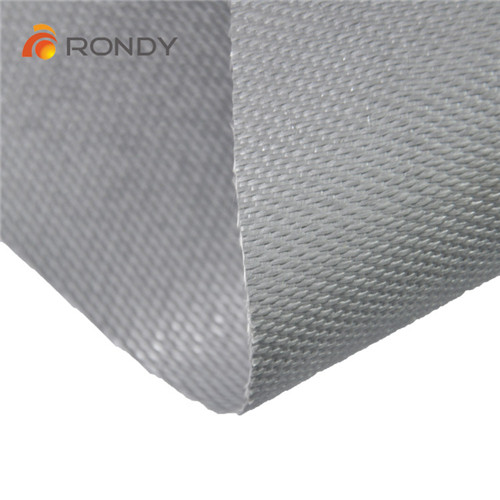

Product pictures:
|
Fiberglass fabrics finishing style |
Service Temperature |
Feature |
Fiberglass fabric Applications |
|
Aluminum coated with fiberglass fabric |
550℃ |
Heat reflection, waterproof,abrasion proof |
Heat protection cushions,motor vehicle industry |
|
Dyeing with fiberglass fabric |
550℃ |
Heat reflection,distinguish work area |
Heat protection, Welding blanket |
|
Heat treatment fiberglass fabric |
550℃ |
Decrease pulverous mote, good osmosis |
Welding blanket, general purpose insulation |
|
Silicone coated with fiberglass fabric |
550℃ |
Mechanical load , good chemical resistance,oil resistance, corrosion resistance |
Welding blanket,foundry splash protetion,conveyor belt and expansion joints |
|
Vermiculite coated fiberglass fabric |
750℃ |
Abrasion resistant and fireproof |
Welding blanket, general purpose insulation |
|
PVC coated with fiberglass fabric |
550℃ |
Waterproof,easy to cuts |
Shed fabric,with-booting tube, fire blanket used on waterproofing , fireproof,cold-proofing |
|
Acrylic coated with fiberglass fabric |
550℃ |
Abrasion resistane, easy to cuts,allergen resistant,anti-adhesive |
Welding blanket, expansion joints |
|
Neoprene coated with fiberglass fabric |
550℃ |
Abrasion resistane,allergen resistant |
Welding protection |
